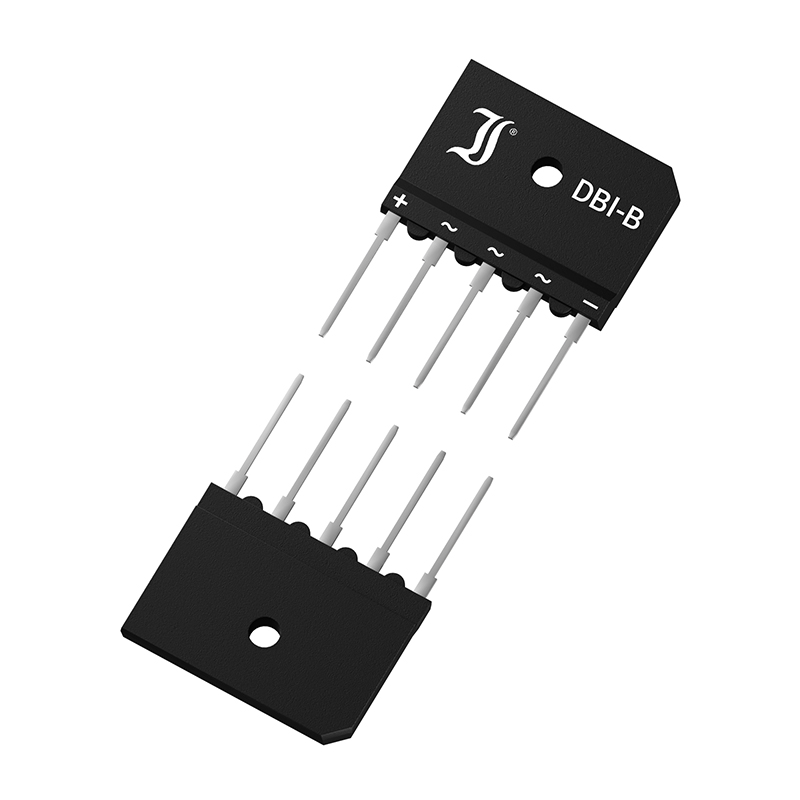

DBI20-08B
ActiveDiotec Semiconductor
BRIDGE RECT 3PHASE 800V 3A DBI-B
DBI20-08B
ActiveDiotec Semiconductor
BRIDGE RECT 3PHASE 800V 3A DBI-B
Description
General part information
DBI20-08B
BRIDGE RECT 3PHASE 800V 3A DBI-B
Technical Specifications
Parameters and characteristics for this part
| Specification | DBI20-08B |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage | 10 µA |
| Diode Type | Three Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | 5-SIP |
| Package Name | DBI-B |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.3 V |
| Voltage - Peak Reverse (Max) | 800 V |
