Specification	XPGDWT-X1-0000-00XPP

Color	White
Current - Max	2 A
Current - Test	350 mA
Height - Seated (Max)	0.094 in
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Thermal Resistance of Package	0.7 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.83 V

XPGDWT Series

...

Part	Package / Case	Current - Test	Color	CRI (Color Rendering Index)	Size / Dimension Length	Size / Dimension Width	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Flux (Typical)	Flux (Maximum)	Flux (Minimum)	Viewing Angle	CCT (K)	Lumens/Watt	Current - Max	Package Name	Height - Seated (Max)	CCT Description	Flux	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XPGDWT-H1-0000-00LDT	1414 (3535 Metric)	350 mA	Cool White	80	0.136 in	0.136 in	3 C/W	2.7 V	Surface Mount	168 lm	172 lm	164 lm	125 °	7000 K	178 lm/W	2 A	1414	0.094 in
CreeLED, Inc. XPGDWT-U1-0000-00F7G	1414 (3535 Metric)	350 mA	Warm White	90	0.136 in	0.136 in		2.7 V	Surface Mount	126 lm	130 lm	122 lm	125 °	3000 K	133 lm/W	2 A	1414	0.094 in	3-Step MacAdam Ellipse
CreeLED, Inc. XPGDWT-B1-0000-00JE7	1414 (3535 Metric)	350 mA	Warm White	70	0.136 in	0.136 in	3 C/W	2.73 V	Surface Mount	152 lm	156 lm	148 lm	125 °	3000 K	159 lm/W	2 A		0.094 in

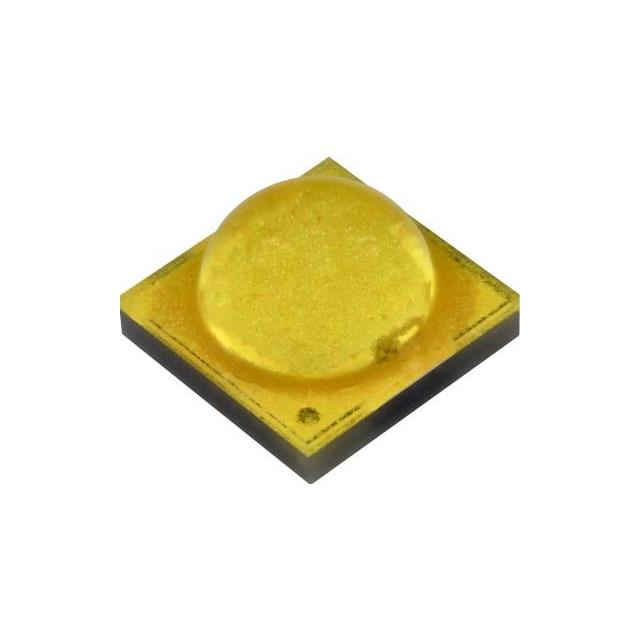

CreeLED, Inc. XPGDWT-N1-0000-00VPP	1414 (3535 Metric)	350 mA	White		0.136 in	0.136 in	0.7 °C/W	2.83 V	Surface Mount				125 °			2 A		0.094 in
CreeLED, Inc. XPGDWT-B1-0000-00JE8	1414 (3535 Metric)	350 mA	Warm White	70	0.136 in	0.136 in	3 C/W	2.7 V	Surface Mount	152 lm	156 lm	148 lm	125 °	2700 K	161 lm/W	2 A	1414	0.094 in
CreeLED, Inc. XPGDWT-BS-0000-00KE4	1414 (3535 Metric)	350 mA	Neutral White	70	0.136 in	0.136 in	3 C/W	2.7 V	Surface Mount	160 lm	164 lm	156 lm	125 °	4500 K	180 lm/W	2 A	1414	0.094 in		170 lm
CreeLED, Inc. XPGDWT-BS-0000-00K7E	1414 (3535 Metric)	350 mA	Warm White	70	0.136 in	0.136 in	3 C/W	2.7 V	Surface Mount	160 lm	164 lm	156 lm	125 °	3000 K	169 lm/W	2 A	1414	0.094 in	5-Step MacAdam Ellipse
CreeLED, Inc. XPGDWT-U1-0000-00FE2	1414 (3535 Metric)	350 mA	Cool White	90	0.136 in	0.136 in	3 C/W	2.73 V	Surface Mount	126 lm	130 lm	122 lm	125 °	5700 K	132 lm/W	2 A		0.094 in
CreeLED, Inc. XPGDWT-01-0000-00MF5	1414 (3535 Metric)	350 mA	Neutral White		0.136 in	0.136 in	3 C/W	2.7 V	Surface Mount	176 lm	180 lm	172 lm	125 °	4200 K	186 lm/W	2 A	1414	0.094 in			70
CreeLED, Inc. XPGDWT-BS-0000-00N5E	1414 (3535 Metric)	350 mA	Neutral White	70	0.136 in	0.136 in		2.7 V	Surface Mount	184 lm	188 lm	180 lm	125 °	4000 K	195 lm/W	2 A	1414	0.094 in	5-Step MacAdam Ellipse

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XPGDWT-X1-0000-00XPP | Datasheet
