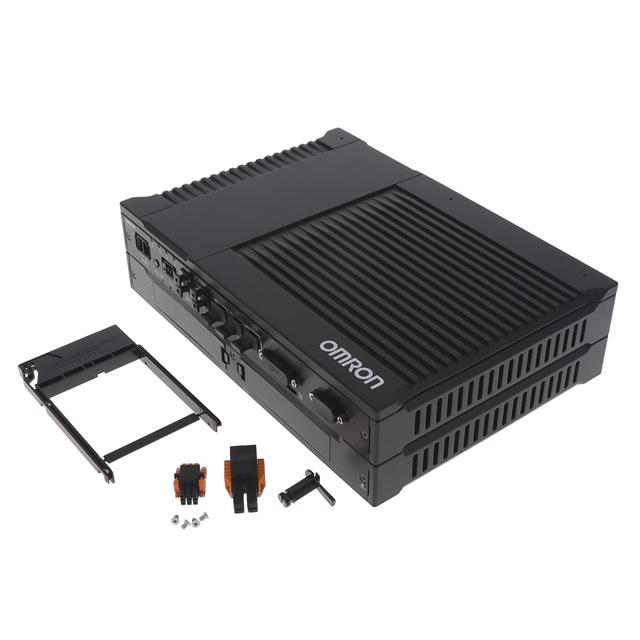

Specification	NYB35-313C1

Core Processor	Intel® Core™ i5-7300U
Core Processor Frequency	2.6 GHz
Display Type	No Display
Expansion Type	PCIe
Ingress Protection	IP20
Memory Max Capacity	8 GB
Memory Type	DDR4
Mounting Type	Panel Mount
Operating System	Windows 10
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Storage Capacity	320 GB
Storage Type	HDD
Type	Box PC
Voltage - Supply (Maximum)	28.8 VDC
Voltage - Supply (Minimum)	20.4 V

NYB35 Series

Part	Mounting Type	Approval Agency	Type	Display Type	Core Processor	Storage Type	Memory Capacity (Installed)	Memory Type	Operating Temperature (Min)	Operating Temperature (Max)	Operating System	Voltage - Supply	Ingress Protection	Expansion Type	Storage Capacity	Features	Core Processor Frequency
Omron Automation and Safety NYB35-40350	Chassis Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	Cfast	16 GB	DDR4	0 °C	55 °C	Windows 10	24 VDC
Omron Automation and Safety NYB35-213C2	Wall Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	HDD	4 GB	DDR4	0 °C	55 °C	Windows 10	24 VDC	IP20	PCIe	320 GB	Micro SD Card Slot	2.6 GHz
Omron Automation and Safety NYB35-30370			Box PC	No Display	Intel® Core™ i5-7300U	Cfast	8 GB	DDR3L	0 °C	55 °C	Windows 10	24 VDC				Micro SD Card Slot
Omron Automation and Safety NYB35-40376	Chassis Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	Cfast	16 GB	DDR4	0 °C	55 °C	Windows 10	24 VDC
Omron Automation and Safety NYB35-30366	Chassis Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	Cfast	8 GB	DDR4	0 °C	55 °C	Windows 10	24 VDC
Omron Automation and Safety NYB35-313C6
Omron Automation and Safety NYB35-313K1			Box PC	No Display	Intel® Core™ i5-7300U	SSD	8 GB	DDR3L	0 °C	55 °C	Windows 10	24 VDC		PCIe	128 GB	Micro SD Card Slot
Omron Automation and Safety NYB35-213K1	Wall Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	SSD	4 GB	DDR4	0 °C	55 °C	Windows 10	24 VDC	IP20	PCIe	128 GB	Micro SD Card Slot	2.6 GHz
Omron Automation and Safety NYB35-40000	Chassis Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	Mass Storage	16 GB	DDR4	0 °C	55 °C	Operating System	24 VDC
Omron Automation and Safety NYB35-30000	Chassis Mount	cULus EAC KC RCM	Box PC	No Display	Intel® Core™ i5-7300U	Mass Storage	8 GB	DDR4	0 °C	55 °C	Operating System	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

NYB35-313C1 | Datasheet
