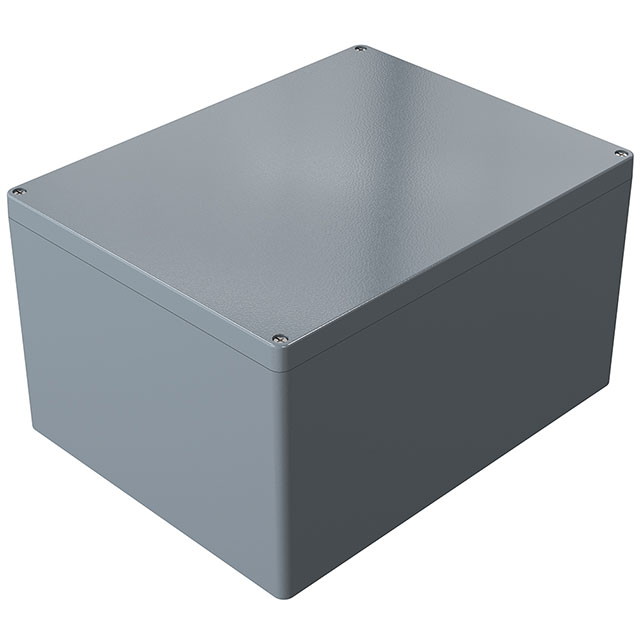

013140238
ActiveRose Enclosures
BOX ALUM 15.91"L X 12.32"W
013140238
ActiveRose Enclosures
BOX ALUM 15.91"L X 12.32"W
Description
General part information
013140238
Box Metal, Aluminum Unpainted Cover Included 15.906" L x 12.323" W (404.00mm x 313.00mm) X 8.937" (227.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 013140238 |
|---|---|
| Area (L x W) | 196 in² |
| Color | Unpainted |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 8.937 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 15.906 in |
| Size / Dimension Width | 12.323 in |
| Thickness | 0.217 in |
| Weight | 21 lbs |
