626-037-262-045

Active

EDAC Inc.

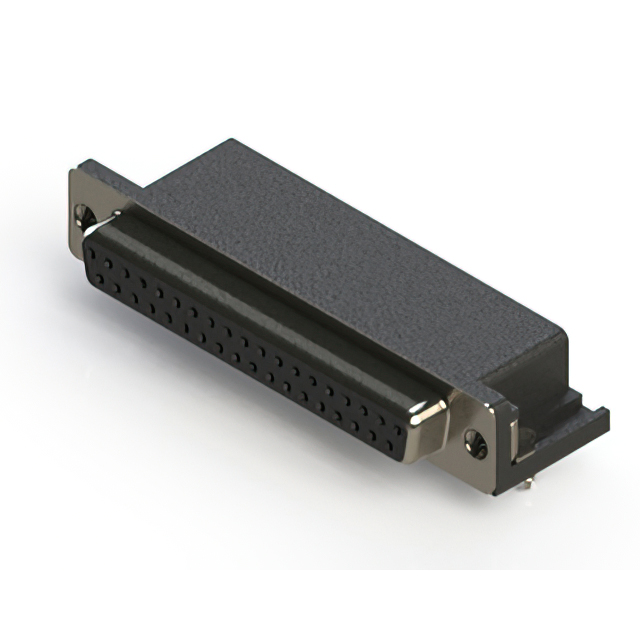

626 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

626-037-262-045

Active

EDAC Inc.

626 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	626-037-262-045

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

626-037 Series

Part	Contact Type	Features	Number of Positions	Backset Spacing	Backset Spacing	Color	Material Flammability Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Contact Material	Connector Type	Shell Size, Connector Layout	Contact Finish	Flange Feature	Number of Rows	Termination	Connector Style	Dielectric Material	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 626-037-662-542	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	-55 °C	125 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Housing/Shell (4-40)	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-262-013	Signal	Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole			-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Female Screwlock (4-40) Mating Side	2	Solder	D-Sub	Polyester Thermoplastic	3 A	Flash
EDAC Inc. 626-037-662-042	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Housing/Shell (4-40)	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-362-043	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.38 µm	15 µin	-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Female Screwlock (4-40) Mating Side	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-662-030	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	4-40	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-362-530	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.38 µm	15 µin	-55 °C	125 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	4-40	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-262-011	Signal	Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole			-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Housing/Shell (Unthreaded)	2	Solder	D-Sub	Polyester Thermoplastic	3 A	Flash
EDAC Inc. 626-037-662-013	Signal	Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Female Screwlock (4-40) Mating Side	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-662-040	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	4-40	2	Solder	D-Sub	Polyester Thermoplastic	3 A
EDAC Inc. 626-037-262-045	Signal	Board Lock Mounting Brackets Shielded	37	0.584 in	14.84 mm	Black	UL94 V-0	Board Edge Right Angle Through Hole			-55 °C	85 °C	Nickel Plated Steel	Copper Alloy	Receptacle Female Sockets	4 (DC C)	Gold	Housing/Shell (M3)	2	Solder	D-Sub	Polyester Thermoplastic	3 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.25

Description

General part information

626-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
