176281-1
ActiveTE Connectivity AMP Connectors

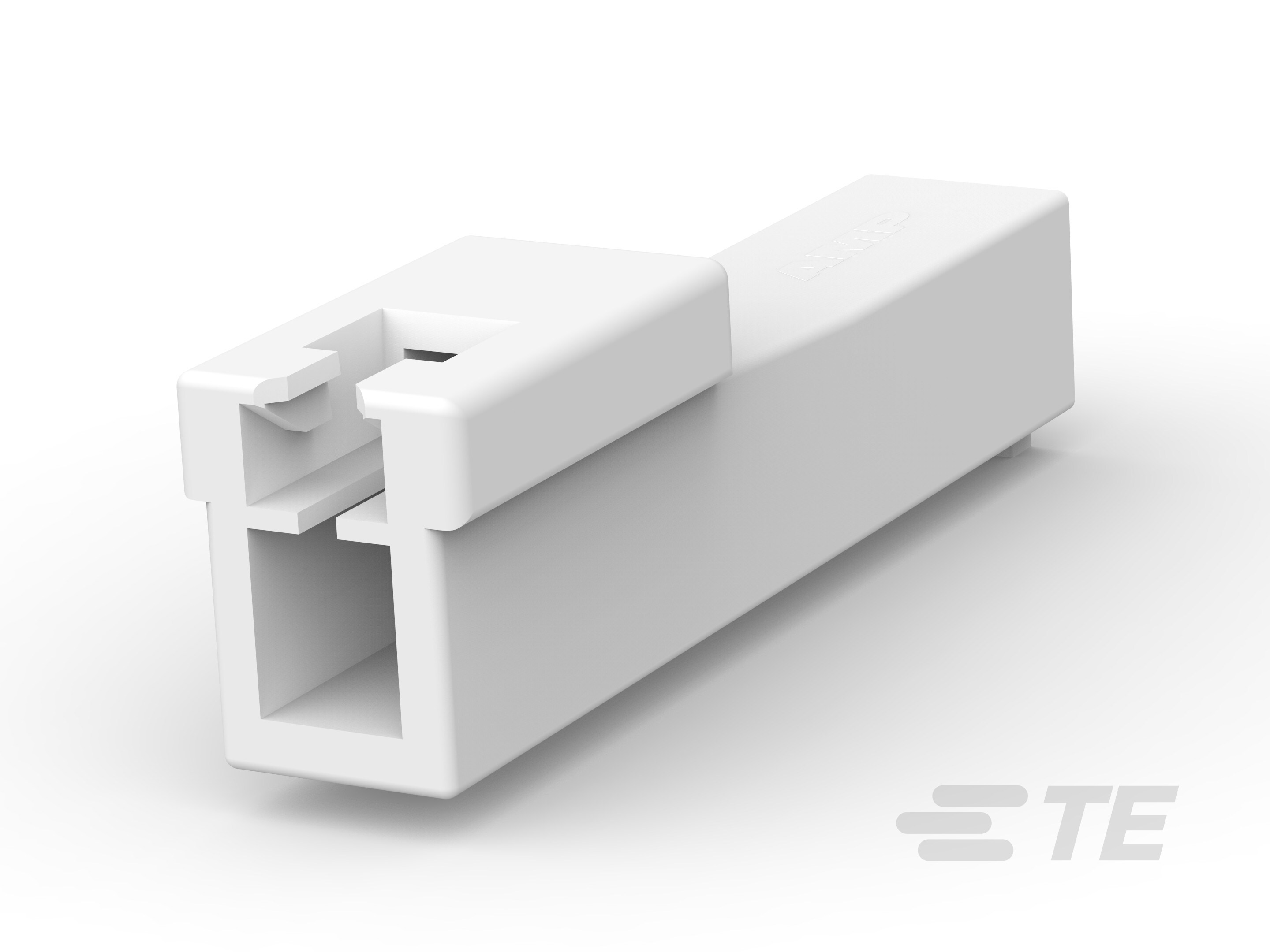

UNIV POWER CAP HSG 1P F/H ROHS COMPLIANT: YES
176281-1
ActiveTE Connectivity AMP Connectors
UNIV POWER CAP HSG 1P F/H ROHS COMPLIANT: YES
Description
General part information
176281-1
1 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 1 Row, 300 VAC, Wire & Cable, Power & Signal, AMP Universal Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 176281-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
AMP Universal Power Connectors
Verification report for UP housing with new alternative material
AMP Universal Power Connector
XREF
AMP Lattice Connector
AMP UNIVERSAL POWER CONNECTOR SERIES
Crimping of Universal Power Contact
Datasheet
AMP UNIVERSAL POWER CONNECTORS REPORT
ENG_CD_176281_B.pdf
176281-1 | Datasheet
Product Change Notice EN
Drawing EN
