NTCS0603E3222GMT
ActiveVishay Dale
NTC SMD 0603 NISN 2K2 2% MEDIUM B T&R E3
NTCS0603E3222GMT
ActiveVishay Dale
NTC SMD 0603 NISN 2K2 2% MEDIUM B T&R E3
Description
General part information
NTCS0603E3222GMT

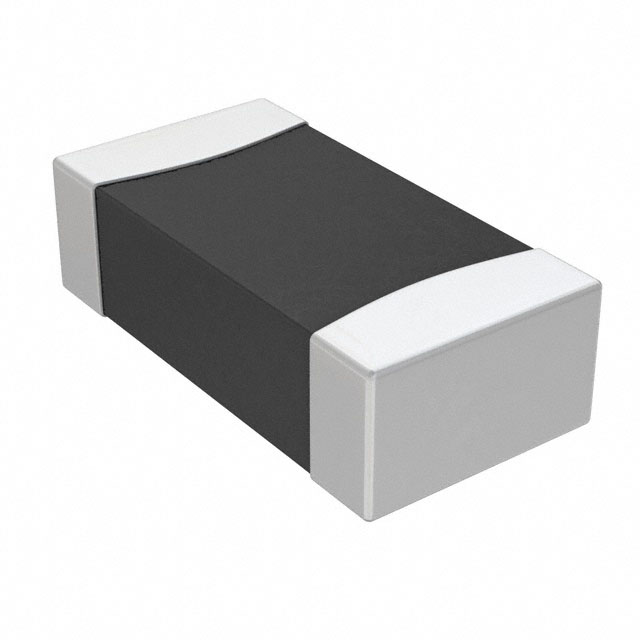

NTC Thermistor 2.2k 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCS0603E3222GMT |
|---|---|
| B Value (25/85) | 3520 K |
| B Value Tolerance | 1 % |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Power - Max | 125 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 2.2 kOhm |
| Resistance Tolerance (%) | 2 % |
