893D336X9020E2TE3
ObsoleteVishay Dale
CAP TANT 33UF 10% 20V 2917
893D336X9020E2TE3
ObsoleteVishay Dale
CAP TANT 33UF 10% 20V 2917
Description
General part information
893D336X9020E2TE3

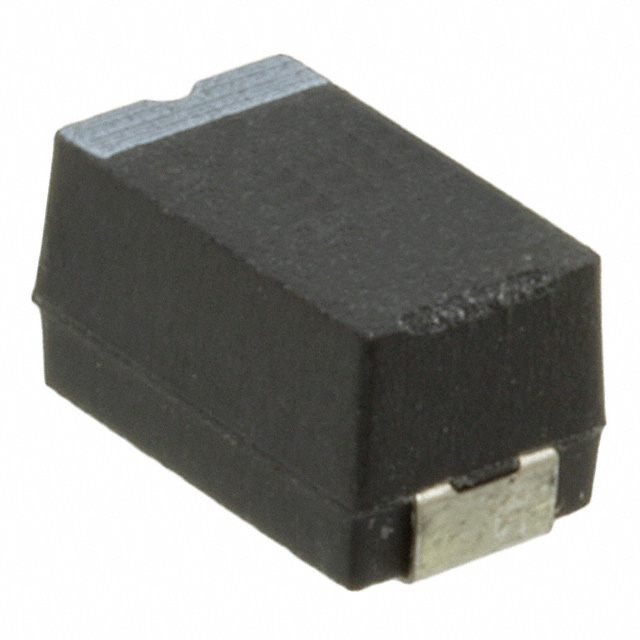

33 µF Molded Tantalum Capacitors 20 V 2917 (7343 Metric) 700mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 893D336X9020E2TE3 |
|---|---|
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 700 mOhm |
| Features | Fail Safe with Built-in Fuse |
| Height - Seated (Max) | 0.17 in |
| Manufacturer Size Code | E |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 20 V |
