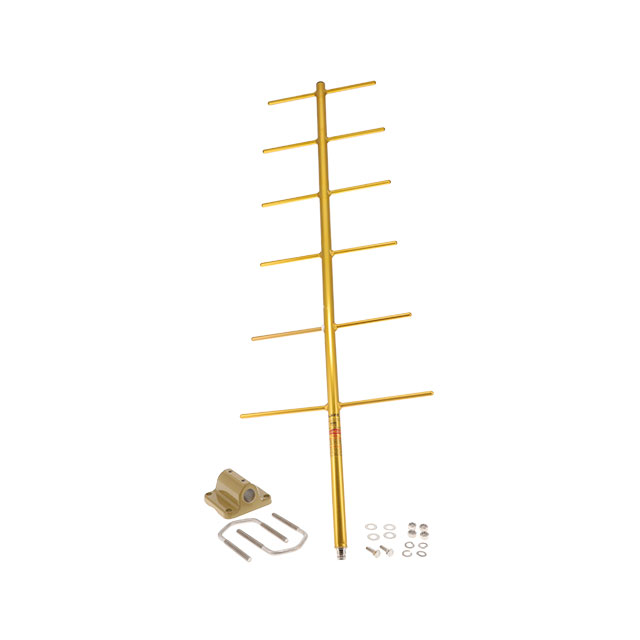

Y4506
ActiveTE Connectivity AMP Connectors
YAGI,FWG,6,450-470MHZ 10.2DBI,INT MT
Y4506
ActiveTE Connectivity AMP Connectors
YAGI,FWG,6,450-470MHZ 10.2DBI,INT MT
Description
General part information
Y4506
Yagi Antenna, Single Band, UHF, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain, Y Series
Technical Specifications
Parameters and characteristics for this part
| Specification | Y4506 |
|---|---|
| Antenna Element Count | 6 elements |
| Antenna Type | Yagi |
| Frequency (Center/Band) | 465 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 480 MHz |
| Frequency Range (Min) | 450 MHz |
| Gain | 10.2 dBd |
| Height (Max) | 40.313 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 300 W |
| Return Loss | -10 dB |
| Termination | N Type Female |
| VSWR | 2 |
