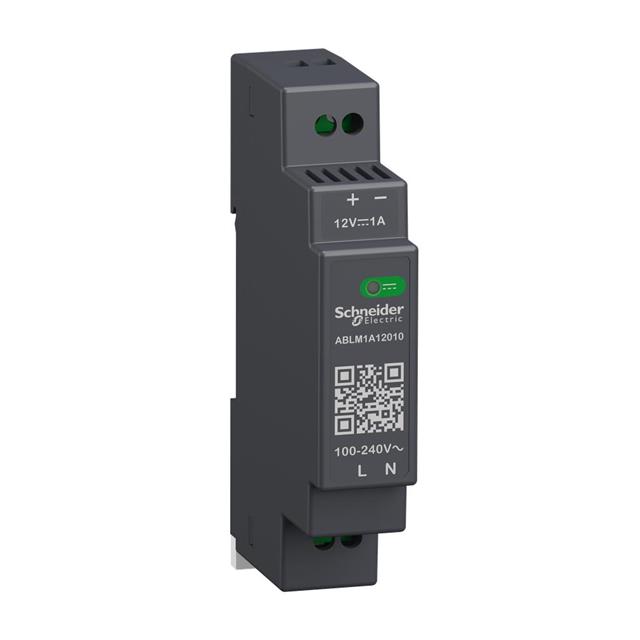

Specification	ABLM1A12010

AC Voltage - Input (Max)	240 VAC
AC Voltage - Input (Min)	100 VAC
Applications	Laboratory, ITE (Commercial)
Approval Agency	EN, cUL, EAC, KC, NEC Class 2, CB, UL, CSA, IEC, CE
Current - Output (Max)	1 A
Efficiency	80 %
Features	Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	12 W
Size / Dimension Height	3.58 in
Size / Dimension Length	2.19 in
Size / Dimension Width	0.71 in
Standard Number	61010-1, 62368-1, 60950-1
Voltage - Isolation	3 kV
Voltage - Output 1	12 V
