AB7010
Obsolete3M Electronic Specialty

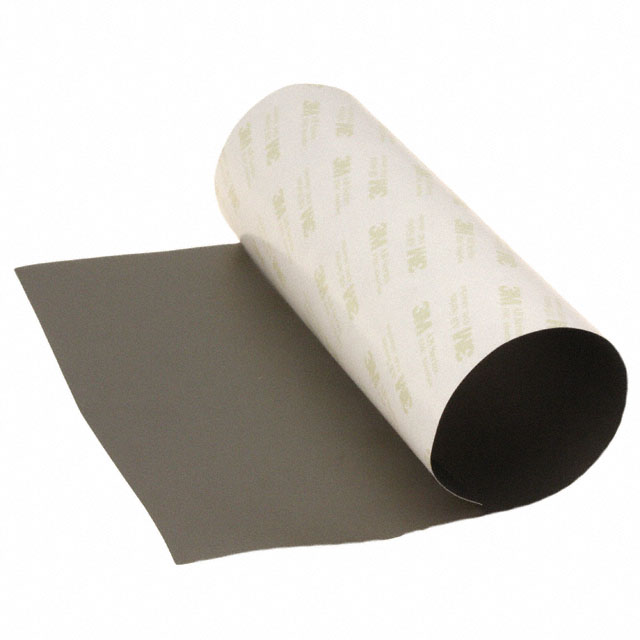

RF ABSORB SHEET 11.693"X8.268"
AB7010
Obsolete3M Electronic Specialty
RF ABSORB SHEET 11.693"X8.268"
Description
General part information
AB7010
RF EMI Absorbing Sheet AB7000 Polymer Resin, Metal Flakes Non-Conductive, Single Sided 8.268" (210.00mm) X 11.693" (297.00mm) X 0.004" (0.10mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | AB7010 |
|---|---|
| Adhesive | Single Sided, Non-Conductive |
| Length | 11.693 in |
| Material | Polymer Resin, Metal Flakes |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shape | Rectangular |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Shipment |
| Storage/Refrigeration Temperature | 70 °F |
| Thickness - Overall | 0.004 in |
| Type | Absorbing Sheet |
| Width | 8.268 in |
