LCCA30692-FT4
ActivePasternack

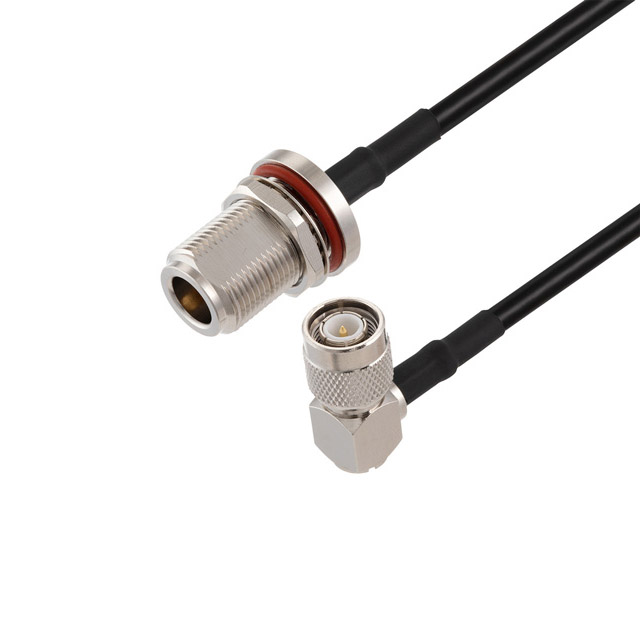

N FEMALE BULKHEAD TO TNC MALE RI
LCCA30692-FT4
ActivePasternack
N FEMALE BULKHEAD TO TNC MALE RI
Description
General part information
LCCA30692-FT4
Cable Assembly Coaxial N-Type to TNC RG-58 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30692-FT4 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
