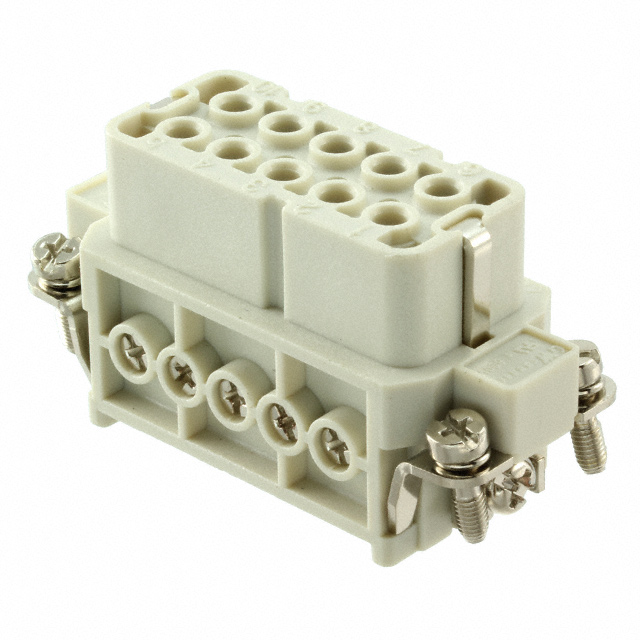

Specification	0936010137

Color	Gray
Connector Type	Insert
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating	16 A
Gender	Female
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Position Types	Ground
Size	10A
Termination Style	Screw
Voltage Rating	250 V

093601 Series

GWconnect HE - Harsh Environment, Single Lever Hood, Die-cast Aluminum, with 1 Lever, Top Entry, Size 3A «21x21», Pg11 Thread, Black

...

Part	Housing Material	Connector Type	Size	Thread Size	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Lock Location	Style	Features	Housing Finish	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Pin or Socket	Type
Molex 0936011080	Zinc Alloy	Base - Box Mount	10B	M32	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	Screw Locks on Hood	Dual Side Entry	Feed Through	Epoxy Powder Paint
Molex 0936011150	Aluminum Alloy Die Cast	Base - Box Mount	10A	M25	Dust Tight Water Resistant	IP66		Locking Clip (1) on Base Bottom	Side Entry	Cover	Powder Coated	125 °C	-40 °C	2.067 in	3.366 in	1.969 in
Molex 0936014501	Aluminum Die Cast	Hood	32B		Dust Tight Water Resistant	IP66	Gray	Locking Clip (1) on Base Bottom			Powder Coated
Molex 0936013294	Aluminum Die Cast	Hood	24B	PG21	Dust Tight Water Resistant Waterproof	IP66 IP69	Gray	Locking Clip (2) on Hood	Side Entry		Powder Coated			2.48 in	4.744 in	1.713 in
Molex 0936013688	Aluminum Die Cast	Hood	24B	PG21	Dust Tight Water Resistant Waterproof	IP66 IP69K	Gray	Locking Clip (1) on Base Bottom	Side Entry		Powder Coated
Molex 0936010492																	Socket Module	Pneumatic
Molex 0936010917	Aluminum Alloy Die Cast	Hood	6B	M20	Dust Tight Water Resistant	IP66		Locking Clip (1) on Base Bottom	Top Entry		Powder Coated	125 °C	-40 °C	2.087 in	2.362 in	1.713 in
Molex 0936014002	Aluminum Alloy Die Cast	Base - Box Mount	24B	M40	Dust Tight Water Resistant	IP66		Locking Clip (2) on Base Bottom	Side Entry	Feed Through	Powder Coated	125 °C	-40 °C	3.15 in	5.65 in	2.244 in
Molex 0936011863	Aluminum Alloy Die Cast	Hood	10B	PG29	Dust Tight Water Resistant	IP66		Locking Clip (2) on Hood	Top Entry		Powder Coated	125 °C	-40 °C	3.189 in	2.894 in	1.713 in
Molex 0936014127	Aluminum Alloy Die Cast	Hood	32A	M32	Dust Tight Water Resistant	IP66		Locking Clip (2) on Base Bottom	Top Entry		Powder Coated	125 °C	-40 °C	3.169 in	3.236 in	2.197 in
