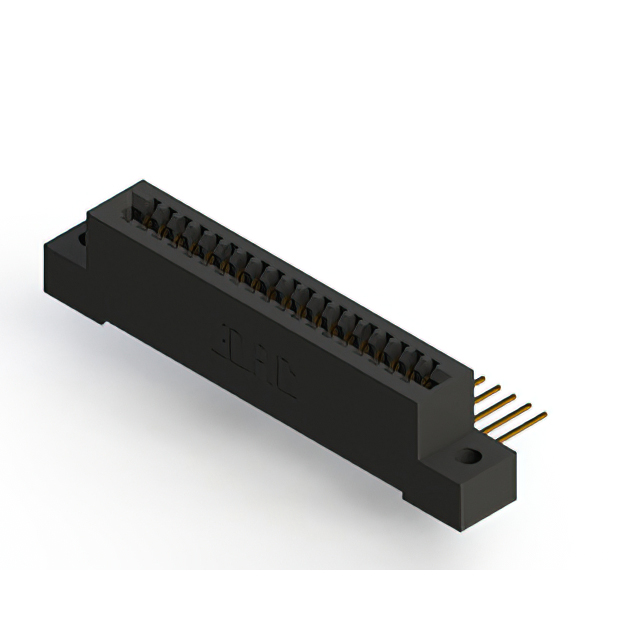

392-019-559-102

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-019-559-102

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-019-559-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

392-019 Series

Part	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Read Out	Color	Termination	Card Type	Contact Finish	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Contact Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 392-019-559-104	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Through Hole Right Angle	Single	Black	Solder Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-542-101	Copper Alloy				Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-558-112	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole Right Angle	Single	Black	Solder Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-559-102	Copper Alloy	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Through Hole Right Angle	Single	Black	Solder Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-542-108	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-523-101	Copper Alloy				Through Hole	Single	Black	Solder	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-544-108	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-541-107	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-542-103	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 392-019-541-112	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole	Single	Black	Wire Wrap	Non Specified - Single Edge	Gold	1	1	19	Polyester Thermoplastic	-40 °C	105 ░C	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	2.54 mm	0.1 in	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.69
Newark	Each	1	$ 15.32
		100	$ 12.34
		250	$ 11.33
		500	$ 10.37
		1000	$ 8.64

Description

General part information

392-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
