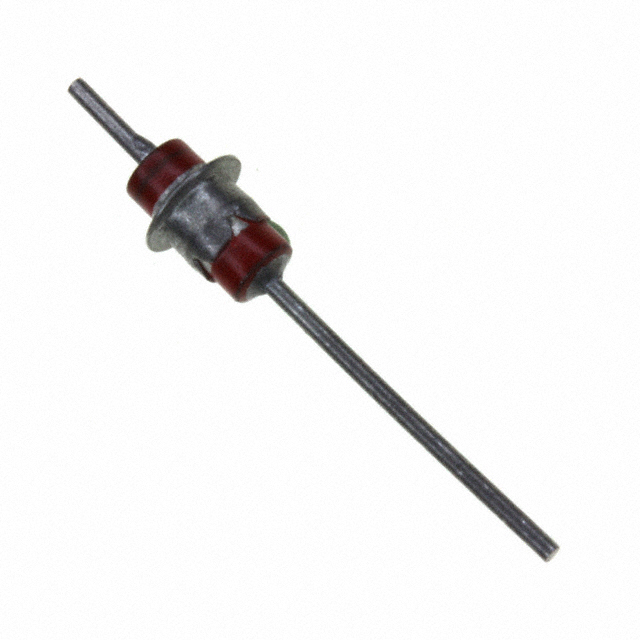

M15733/33-0002
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 1750PF CUSTOM
M15733/33-0002
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 1750PF CUSTOM
Description
General part information
M15733/33-0002
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1750pF 10 A Axial, Eyelet
Technical Specifications
Parameters and characteristics for this part
| Specification | M15733/33-0002 |
|---|---|
| Attenuation Value | 50 dB |
| Capacitance | 1750 pF |
| Current | 10 A |
| ESD Protection | No |
| Filter Order | 3 |
| Mounting Type | Custom |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Eyelet, Axial |
| Size / Dimension Diameter | 0.19 in |
| Size / Dimension Length | 0.4 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 125 VAC |
