9001KR1BH5

9001KR1BH5

Active
SCHNEIDER ELECTRIC

INDUSTRIAL PUSHBUTTON SWITCH, HARMONY 9001K SERIES, 30 MM, SPST-NO, MOMENTARY, ROUND, BLACK

Find alt

Description

General part information

9001KR Series

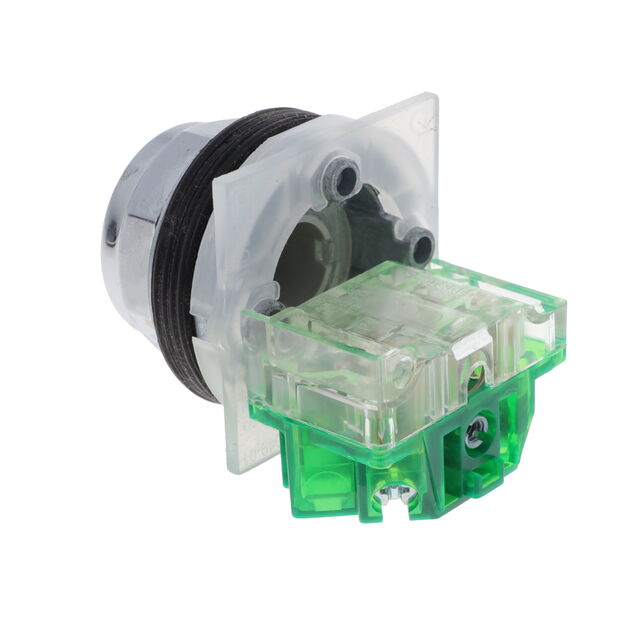

The 9001KR1BH5 is a SPST type-K Pushbutton Switch with 1 NO silver alloy contacts and screw clamp terminals. It features octagonal signalling head, black flush spring return operator, chromium-plated metal bezel and cross slotted head screw head. This 9001K series pushbutton is suitable for Harmony 9001K range products.

Technical Specifications

Parameters and characteristics for this part

Specification9001KR1BH5
Actuator TypeRound, Flush, Button
CircuitSPST-NO
Color - Actuator/CapBlack
Current Rating550 mA, 3 A
Ingress Protection DescriptionDust Tight, Water Resistant
Ingress Protection IP RatingIP66
Mechanical Life (Cycles)5000000 Cycles
Mounting TypeFront, Panel Mount
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Panel Cutout Diameter30 mm
Panel Cutout ShapeCircular
Switch FunctionOff-On
Termination StyleScrew Terminal
TypeStandard
Voltage Rating - AC240 V
Voltage Rating - DC125 V
