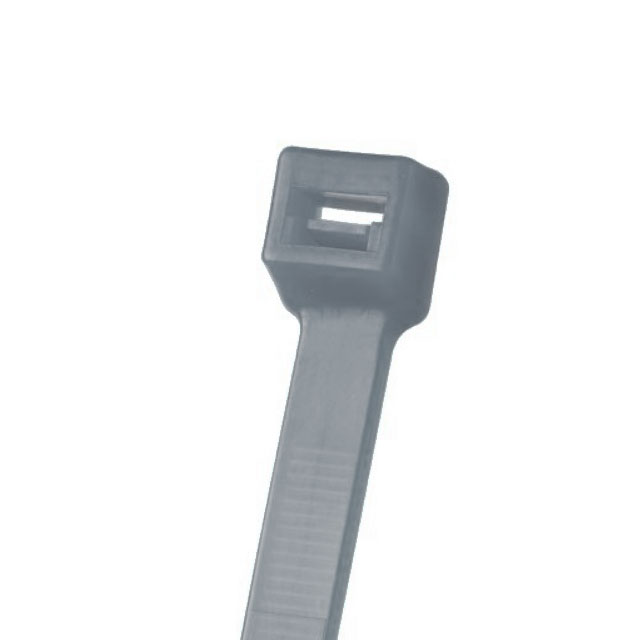

Specification	PLT2S-M8

Bundle Diameter	1.88 in
Color	Gray
Length - Actual	0.617 ft
Length - Approximate	7.5 in
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Free Hanging (In-Line)
Shelf Life	48 Months
Shelf Life Start	Date of Manufacture
Tensile Strength	50 lbs
Width	0.19 in
Wire/Cable Tie Type	Locking, Standard

PLT2S Series

Cable Ties Cable Tie 14.5L (368mm) Light-Heavy

Part	Wire/Cable Tie Type	Material	Length - Approximate	Features	Width	Bundle Diameter	Color	Length - Actual	Tensile Strength	Mounting Type	Shelf Life	Shelf Life Start
Panduit Corp PLT2S-M120	Locking Standard	Nylon 12 Polyamide (PA12)	7.5 in	Chemical Resistant Weather Resistant	0.19 in	1.88 in	Black	0.617 ft	40 lbs	Free Hanging (In-Line)
Panduit Corp PLT2S-M100	Locking Standard	Polypropylene (PP)	7.5 in	Chemical Resistant Weather Resistant	0.19 in	1.88 in	Black	0.617 ft	30 lbs	Free Hanging (In-Line)
Panduit Corp PLT2S-M30	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in	Heat Stabilized	0.19 in	1.88 in	Black	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-M00	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in	Weather Resistant	0.19 in	1.88 in	Black	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-M300	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in	Heat Stabilized Weather Resistant	0.19 in	1.88 in	Black	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-C71	Locking Standard	Polyetheretherketone (PEEK)	7.5 in	Chemical Resistant Flame Retardant Halogen Free High Temperature	0.19 in	1.88 in	Brown Translucent	0.617 ft	150 lbs	Free Hanging (In-Line)
Panduit Corp PLT2S-M60	Standard Tie	6 Nylon 6 Polyamide (PA66)	7.5 in	Flame Retardant	0.19 in	1.88 in	Black	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-M6	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in		0.19 in	1.88 in	Blue	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-C10	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in		0.19 in	1.88 in	White	0.617 ft	50 lbs	Free Hanging (In-Line)	48 Months	Date of Manufacture
Panduit Corp PLT2S-MP0	Locking Standard	6 Nylon 6 Polyamide (PA66)	7.5 in	Weather Resistant	0.19 in	1.88 in	Black	0.617 ft	50 lbs	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Material & Color Availability Chart

PLT2S-M8 | Datasheet
