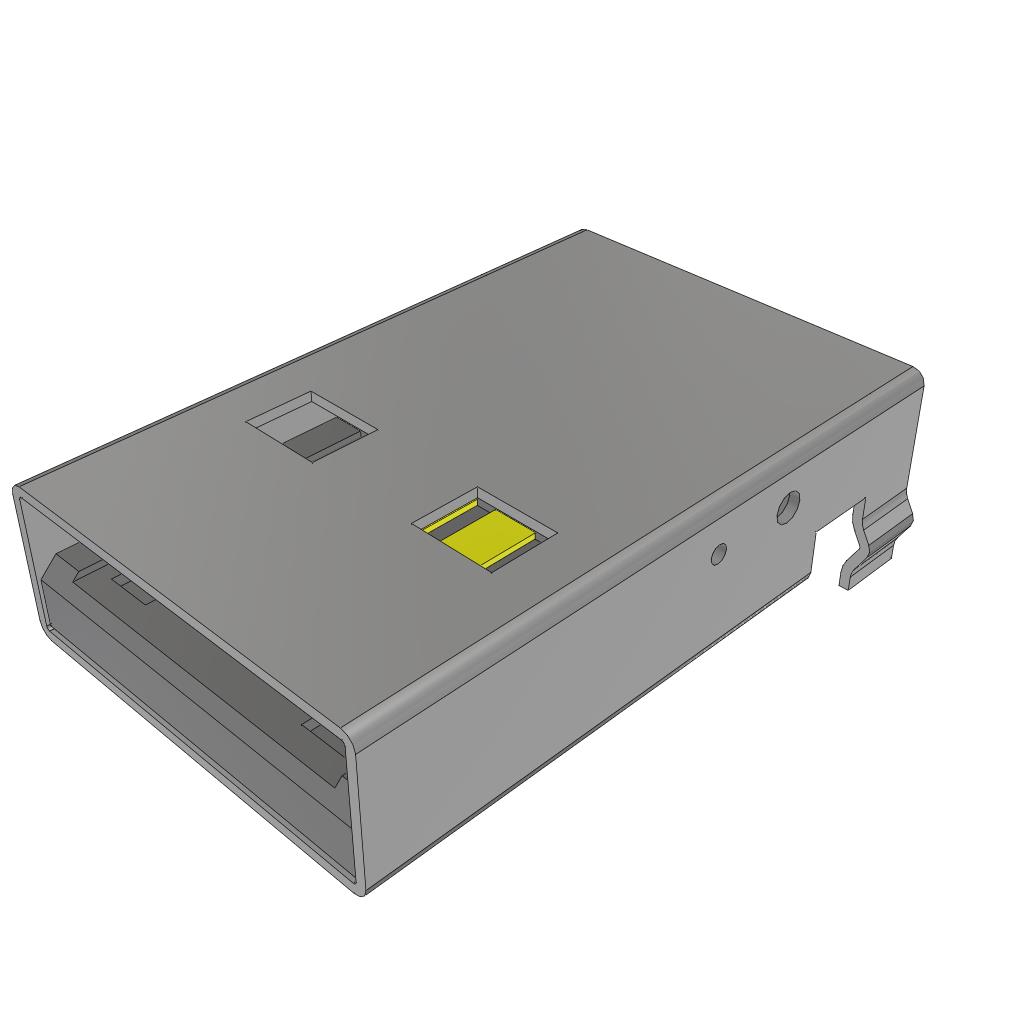

Specification	USB-AM-S-S-B-TH

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Mating Cycles	1500 cycles
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	4
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-50 °C
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB-AM Series

Part	Gender	Termination	Shielding	Connector Type	Features	Number of Ports	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Contacts	Specifications	Voltage - Rated	Mating Cycles	Mounting Feature	Shell/Shielding Material	Contact Finish	Insulation Color
Samtec Inc. USB-AM-S-F-W-TH	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Lock	1	-50 °C	85 °C	Right Angle Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal	Phosphor Bronze	Gold	White
Samtec Inc. USB-AM-S-F-B-SM1-R-TR	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	Black
Samtec Inc. USB-AM-S-S-B-SM1	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	Black
Samtec Inc. USB-AM-S-F-B-TH	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Lock	1	-50 °C	85 °C	Right Angle Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal	Phosphor Bronze	Gold	Black
Samtec Inc. USB-AM-S-F-W-SM1-R-TR	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	White
Samtec Inc. USB-AM-S-F-B-SM1-R	Receptacle	Solder	Shielded	USB-A (USB TYPE-A)		1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	Black
Samtec Inc. USB-AM-S-S-B-SM1-R-TR	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	Black
Samtec Inc. USB-AM-S-S-W-SM1-TR	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	White
Samtec Inc. USB-AM-S-S-W-SM1-R	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Surface Mount Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal		Gold	White
Samtec Inc. USB-AM-S-S-B-TH-R	Plug	Solder	Shielded	USB-A (USB TYPE-A)	Board Guide	1	-50 °C	85 °C	Right Angle Through Hole	4	USB 2.0	30 VAC	1500 cycles	Horizontal	Phosphor Bronze	Gold	Black
