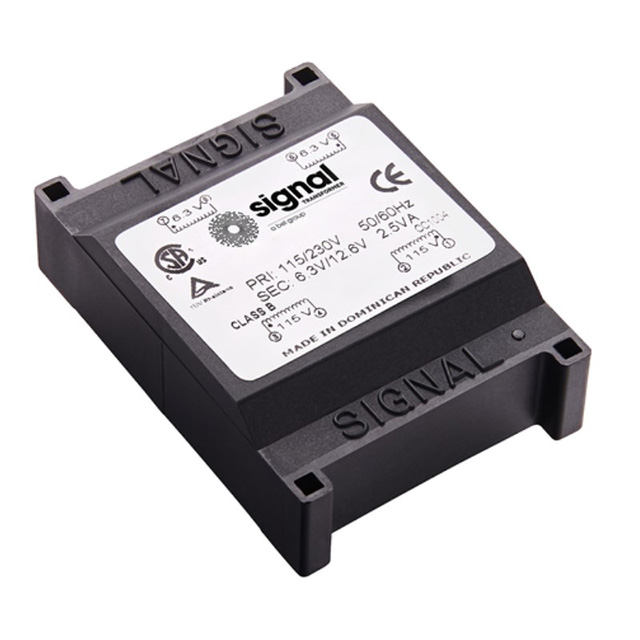

20-125-LPI
ActiveSignal Transformer
PWR XFMR SEMI-TORO 2.5VA TH
20-125-LPI
ActiveSignal Transformer
PWR XFMR SEMI-TORO 2.5VA TH
Description
General part information
20-125-LPI
PWR XFMR SEMI-TORO 2.5VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-125-LPI |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 250 mA |
| Current - Output (Max) Series | 125 mA |
| Height - Seated (Max) | 18.3 mm |
| Mounting Type | Through Hole |
| Power - Max | 2.5 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 60.2 mm |
| Size / Dimension Width | 42.1 mm |
| Termination Style | PC Pin |
| Type | Semi-Toroidal |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 10 V |
| Voltage - Secondary (Full Load) (Series) | 20 V |
| Weight | 0.27 lb |
