1744442
ActivePhoenix Contact

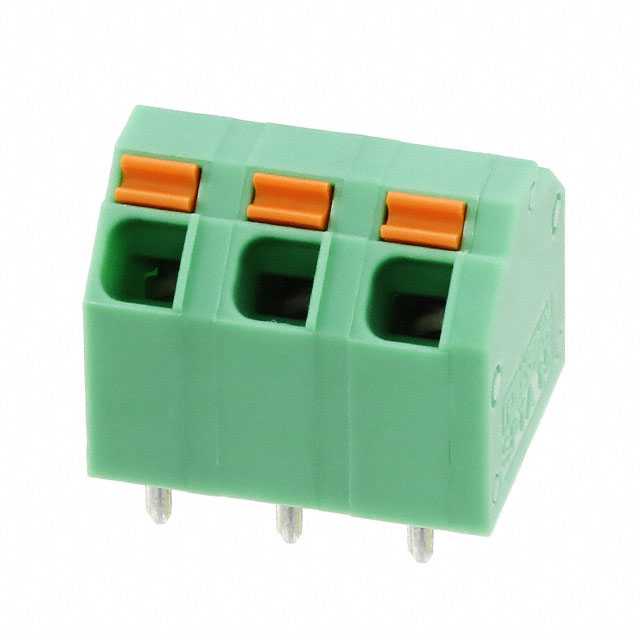

TERM BLOCK 3POS 45DEG 5.08MM PCB
1744442
ActivePhoenix Contact
TERM BLOCK 3POS 45DEG 5.08MM PCB
Description
General part information
1744442
3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1744442 |
|---|---|
| Color | Green |
| Current | 10 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
