031-5891-RFX

Active

AMPHENOL RF

CONN ADAPT JACK-JACK TNC 50 OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN ADAPT JACK-JACK TNC 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-5891-RFX	031-58 Series

Adapter Series	TNC to TNC	TNC to TNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	188, 188A, 316, LMR-100, M17/119-RG174, RG-174, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	TNC
Connector Type	-	Female Socket, Jack
Contact Termination	-	Crimp
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket	TNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack	Female Socket, TNC Jack
Dielectric Material	Polyoxymethylene (POM) Acetal	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz	3 - 11 GHz
Housing Color	-	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher, 1 Insulator, 7 pcs, 1 Ferrule, 1 Contact, 1 Sleeve
Insertion Loss	-	0.35 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead	Bulkhead, Bulkhead - Front Side Nut
Number of Ports	-	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	-	Crimp
Style	Straight	Straight
Voltage Rating	-	500 V

CONN ADAPT JACK-JACK TNC 50 OHM

Part	Adapter Series	Mounting Feature	Body Finish	Convert From (Adapter End)	Includes	Center Contact Material	Center Contact Plating	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Center Gender	Style	Convert To (Adapter End)	Adapter Type	Impedance	Frequency - Max [Max]	Dielectric Material	Insertion Loss	Connector Type	Shield Termination	Voltage Rating	Contact Termination	Number of Ports	Connector Style	Cable Group	Housing Color
AMPHENOL RF 031-5891-RFX	TNC to TNC	Bulkhead	Nickel	TNC Jack, Female Socket	1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	Phosphor Bronze	Gold	500	Brass	-65 ░C	165 °C	Same Series	Female to Female	Straight	Female Socket, TNC Jack	Jack to Jack	50 Ohms	11 GHz	Polyoxymethylene (POM) Acetal
AMPHENOL RF 031-5881-RFXD		Bulkhead - Front Side Nut	Nickel		1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve, 7 pcs	Phosphor Bronze	Gold	500	Brass	-40 °C	85 °C						50 Ohms	3 GHz	Polytetrafluoroethylene (PTFE)	0.35 dB	Female Socket, Jack	Crimp	500 V	Crimp	1	TNC	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Silver
AMPHENOL RF 031-5858-RFX		Bulkhead - Front Side Nut	Nickel		1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	Phosphor Bronze	Gold	500	Brass	-65 ░C	165 °C						50 Ohms	11 GHz	Polytetrafluoroethylene (PTFE)		Female Socket, Jack	Crimp	500 V	Crimp	1	TNC	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

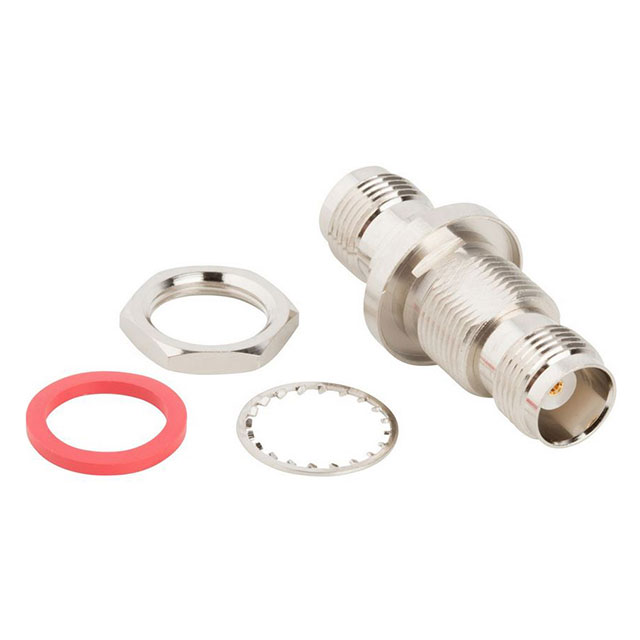

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
