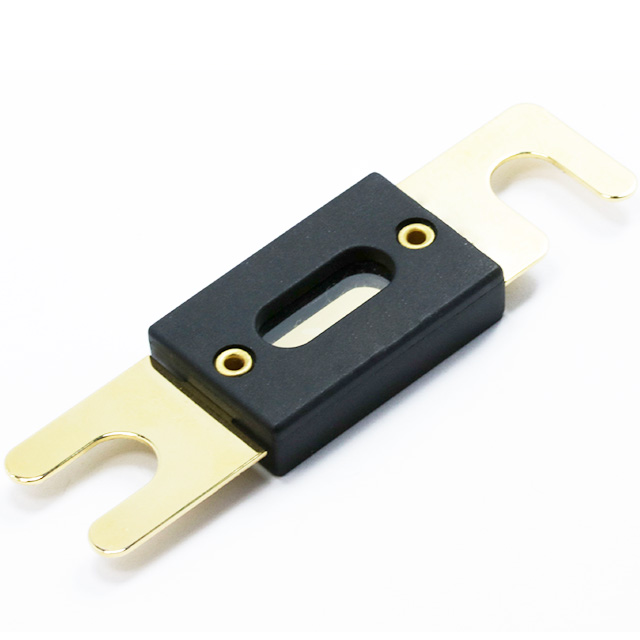

ANF-125A

Active

OptiFuse

FUSE STRIP 125A 32VDC RECT

Search across all available documentation for this part.

Active

OptiFuse

FUSE STRIP 125A 32VDC RECT

Technical Specifications

Parameters and characteristics for this part

Specification	ANF-125A

Applications	Automotive
Breaking Capacity @ Rated Voltage	1 kA
Current Rating (Amps)	125 A
Fuse Type	Fuse Strip
Mounting Type	Bolt Mount
Package / Case	Rectangular, Blade
Response Time	Fast Blow
Size / Dimension [x]	1.39 in
Size / Dimension [x]	35.3 mm
Size / Dimension [y]	22.1 mm
Size / Dimension [y]	0.87 in
Size / Dimension [z]	8.3 mm
Size / Dimension [z]	0.327 in
Voltage Rating - DC	32 V

FUSE STRIP 125A 32VDC RECT

Part	Mounting Type	Breaking Capacity @ Rated Voltage	Fuse Type	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Response Time	Voltage Rating - DC	Current Rating (Amps)	Package / Case
OptiFuse ANF-125A	Bolt Mount	1 kA	Fuse Strip	Automotive	8.3 mm	22.1 mm	1.39 in	35.3 mm	0.87 in	0.327 in	Fast Blow	32 V	125 A	Rectangular, Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

125A 32 VDC Fuse Fuse Strip Bolt Mount
