SSM015L2HN

Active

TE Connectivity Aerospace, Defense and Marine

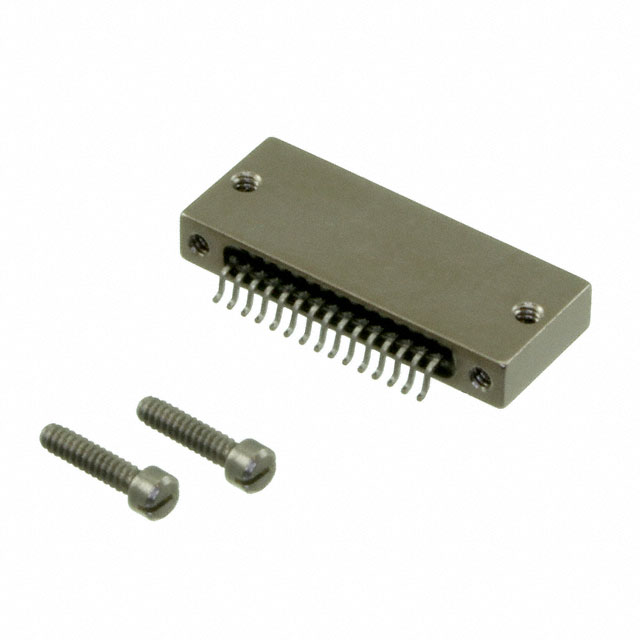

CONN D-TYPE RCPT 15P SMD R/A SLD

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-TYPE RCPT 15P SMD R/A SLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSM015L2HN	SSM015 Series

	-	-
Cable Termination	-	Crimp
Color	-	Multiple, Individual
Connector Style	D-Type, Nano-D	D-Type, Nano-D
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug to Individual Wire Leads
Contact Finish	Tin-Lead	Gold, Tin-Lead, Nickel
Contact Material	Beryllium Copper	Beryllium Copper
Contact Type	Signal	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Length	-	1 ft
Length	-	304.8 mm
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	15	15
Number of Rows	1	1
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shielding	-	Unshielded
Termination	Solder	Solder

SSM015M5CN = THRU-HOLE

Part	Shell Material, Finish	Connector Style	Number of Positions	Contact Type	Contact Material	Connector Type	Contact Finish	Dielectric Material	Mounting Type	Number of Rows	Termination	Shielding	Color	Length	Length	Cable Termination
TE Connectivity Aerospace, Defense and Marine SSM015M5CN
TE Connectivity Aerospace, Defense and Marine SSM015T2HN	Aluminum, Electroless, Nickel Plated	D-Type, Nano-D	15	Signal	Beryllium Copper	Receptacle, Female Sockets	Gold	Liquid Crystal Polymer (LCP)	Surface Mount, Right Angle	1	Solder
TE Connectivity Aerospace, Defense and Marine SSM015L2HN	Aluminum, Electroless, Nickel Plated	D-Type, Nano-D	15	Signal	Beryllium Copper	Receptacle, Female Sockets	Tin-Lead	Liquid Crystal Polymer (LCP)	Surface Mount, Right Angle	1	Solder
TE Connectivity Aerospace, Defense and Marine SSM015PC2DC012N			15			Plug to Individual Wire Leads	Nickel			1		Unshielded	Individual, Multiple	1 ft	304.8 mm	Crimp
TE Connectivity Aerospace, Defense and Marine SSM015PC2DC024Q

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Type, Nano-D Receptacle, Female Sockets Connector
