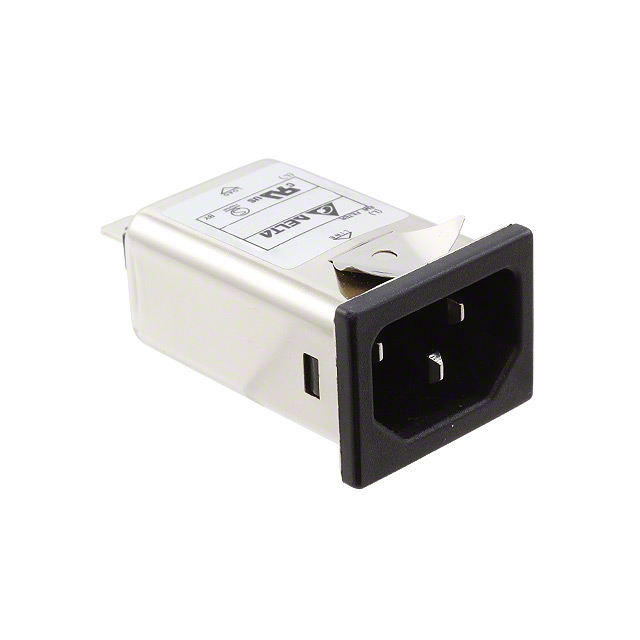

10KENG3EAM

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	10KENG3EAM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.81 mm
Panel Thickness [Min]	0.032 in
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Current Rating - Appliance Inlet	Current Rating - Filter	Accomodates a Fuse	Filter Type	Connector Style	Termination	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Mounting Type	Approval Agency
Delta Electronics 10KENG3EAM	10 A	10 A		Filtered (EMI, RFI) - Commercial, Medical	IEC 320-C14	Quick Connect	Male Blades, Receptacle	115 VAC	250 VAC	0.81 mm	0.032 in	0.063 in	1.6 mm	Panel Mount, Snap-In	CSA, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
