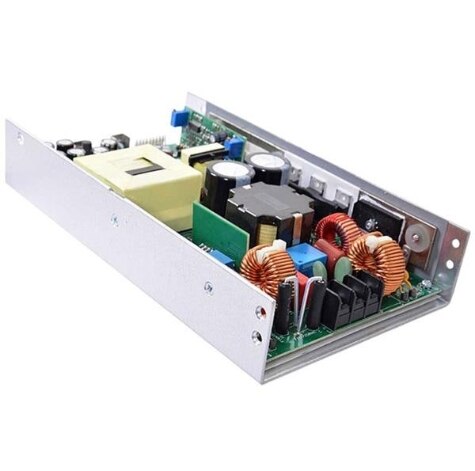

MVPS800-1024-R
ActiveBel Fuse Inc.
SWITCHING POWER SUPPLIES POWERSUPPLY,MVPS800-1024-R
MVPS800-1024-R
ActiveBel Fuse Inc.
SWITCHING POWER SUPPLIES POWERSUPPLY,MVPS800-1024-R
Description
General part information
MVPS800-1024-R
SWITCHING POWER SUPPLIES POWERSUPPLY,MVPS800-1024-R
Technical Specifications
Parameters and characteristics for this part
| Specification | MVPS800-1024-R |
|---|---|
| Applications | Medical |
| Approval Agency | CE, UL, CB, cUL, NEMKO |
| Current - Output 1 | 33.33 A |
| Efficiency | 93 % |
| Features | Universal Input, PFC, Remote On/Off, Standby Output, Adjustable Output, Load Sharing, DC Input Capable, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 600 W, 800 W |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 8.5 in |
| Size / Dimension Width | 5 in |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 390 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4.245 kV |
| Voltage - Output 1 | 24 V |
