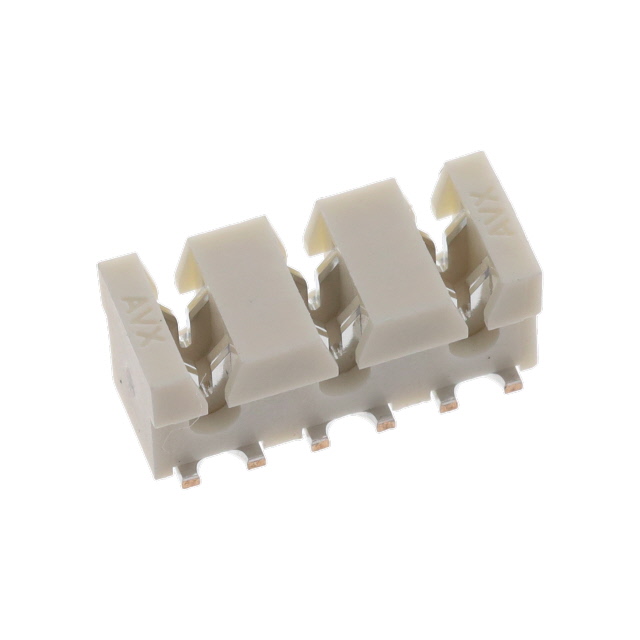

009176003001906
ActiveKYOCERA AVX
CONN WIRE IDC
009176003001906
ActiveKYOCERA AVX
CONN WIRE IDC
Description
General part information
009176003001906
18 AWG SSL Contact, IDC Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 009176003001906 |
|---|---|
| Connector Type | Contact, IDC |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Per Contact) | 10 A |
| Housing Color | White |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 3 cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge | 18 AWG |
