Description
General part information
2400405-1

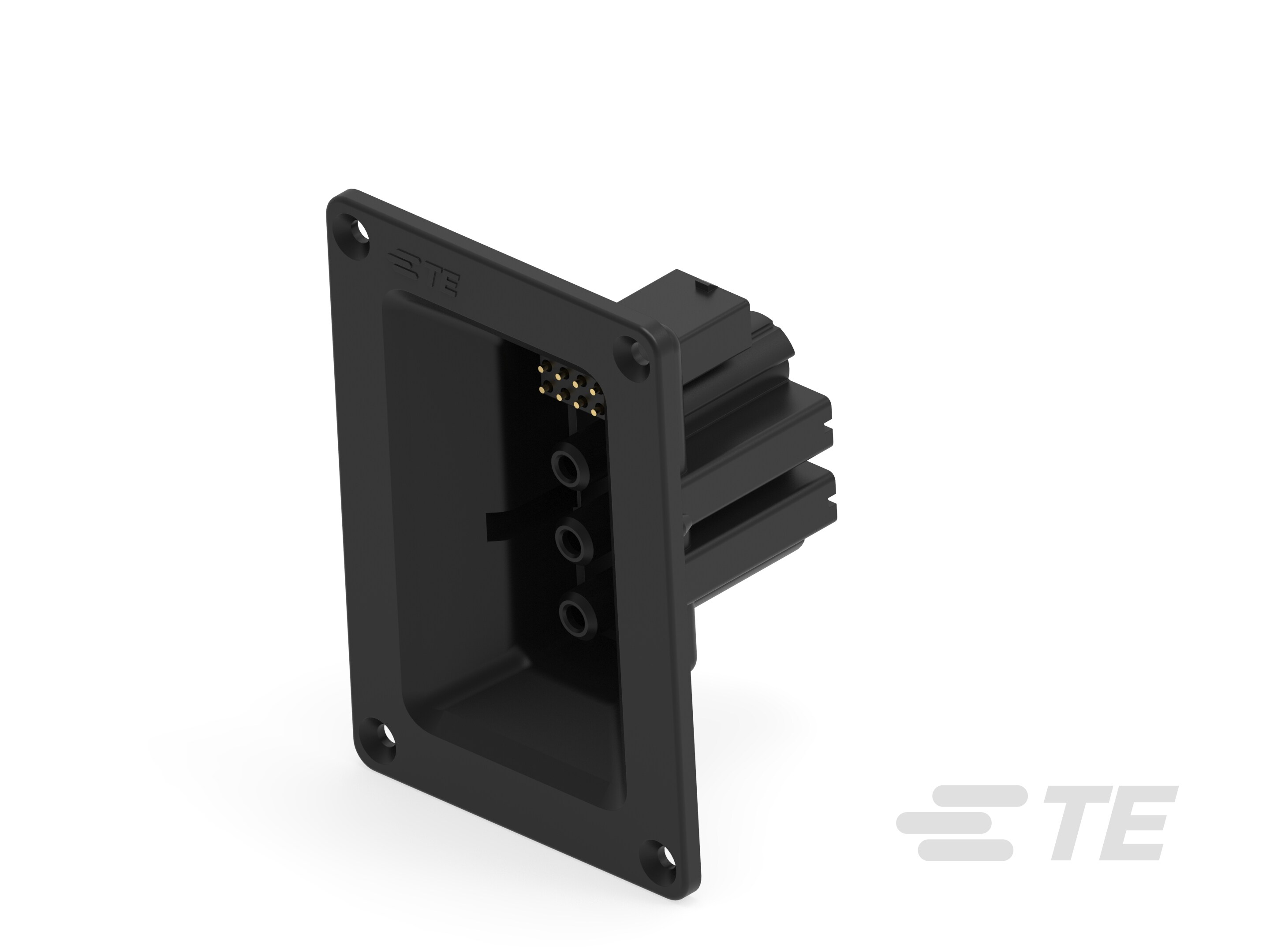

11 Position, Receptacle, Connector Kit, 4/8 Indent Crimp, Wire-to-Panel, 12mm Flame Test per Standard UL 746C, 15 mm [.59 in] Centerline, 1 Row
Technical Specifications
Parameters and characteristics for this part
| Specification | 2400405-1 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Features | Blind Mating |
| Mounting Type | Panel Mount |
| Number of Positions (Normal) | 8 |
| Number of Positions (Power) | 3 |
| Number of Positions (Total) | 11 |
| Wire Type | Discrete |
