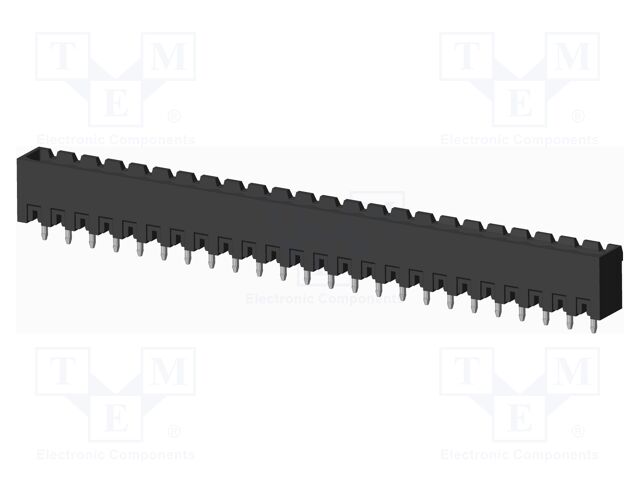

Specification	OQ2471000300G

Color	Black
Contact Mating Finish	Tin
Current - UL	20 A
Features	Locking Ramp
Header Orientation	Vertical
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	24 pos
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Positions Per Level	24
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

oq Series

Part	Termination Style	Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Number of Levels	Positions Per Level	Color	Header Orientation	Features	Current - UL	Contact Mating Finish	Voltage - UL	Number of Positions	Material Flammability Rating	Contact Tail Length	Housing Material	Contact Material	Insulation Height	Header Orientation Angle
McGill Microwave Systems OQ2175800000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.197 in	1	21	Gray	Vertical	Mating Flange	20 A	Tin	300 V	21	UL94 V-0	0.157 in	Thermoplastic	Copper	0.472 in
McGill Microwave Systems OQ2375810000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.197 in	1	23	Gray	Right Angle	Mating Flange	20 A	Tin	300 V	23						90 °
McGill Microwave Systems OQ1553510100G
McGill Microwave Systems OQ1112510000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.138 in	1	11	Green	Right Angle		10 A	Tin	300 V	11						90 °
McGill Microwave Systems OQ2071800300G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.197 in	1	20	Gray	Vertical	Locking Ramp	20 A	Tin	300 V	20
McGill Microwave Systems OQ2354810000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	5.08 mm	1	23	Gray	Right Angle		20 A	Tin	300 V	23	UL94 V-0	0.138 in	Thermoplastic	Copper	0.335 in	90 °
McGill Microwave Systems OQ033500D000G	Solder	Header Male Pins Shrouded (4 Side)	Surface Mount	-40 °C	65 °C	0.15 in	1	3	Black	Vertical	Cover Solder Retention	8 A	Tin	150 V	3
McGill Microwave Systems OQ2255000000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	5.08 mm	1	22	Black	Vertical	Mating Flange	20 A	Tin	300 V	22
McGill Microwave Systems OQ1432800000G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.15 in	1	14	Gray	Vertical		10 A	Tin	300 V	14
McGill Microwave Systems OQ0812800300G	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	-40 °C	115 °C	0.138 in	1	8	Gray	Vertical	Locking Ramp	10 A	Tin	300 V	8
