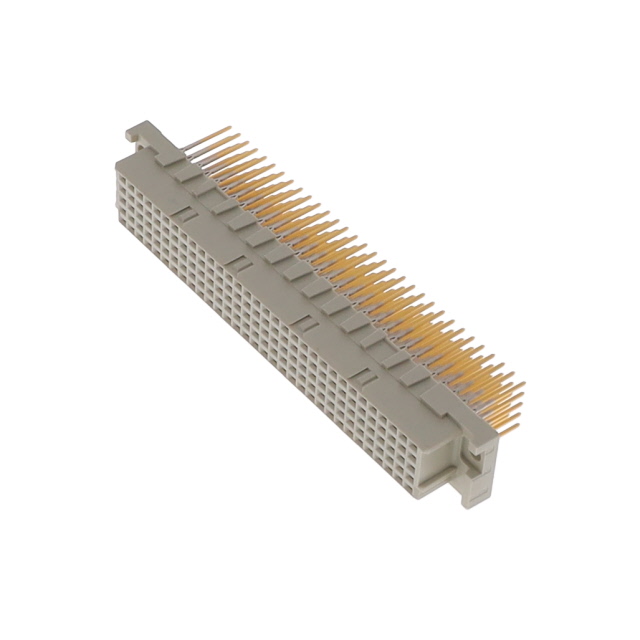

Specification	254975-E

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	2
Material - Insulation	Glass Filled, PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	160
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	E
Termination	Press-Fit
