HG10382DU-GPS

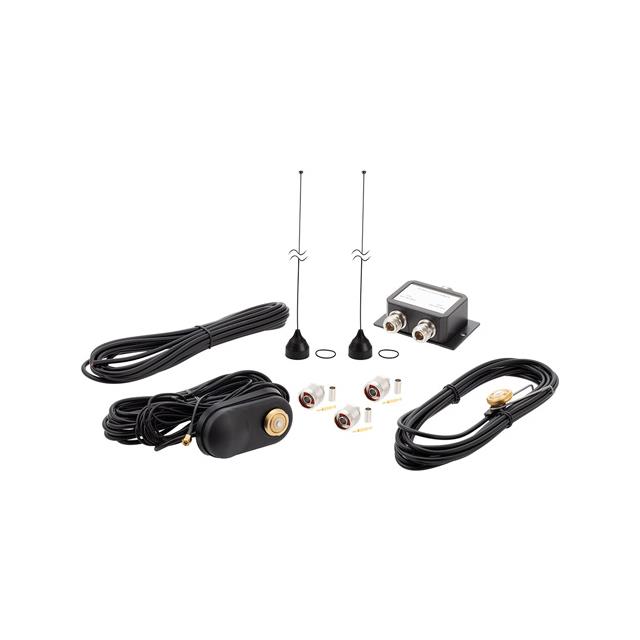

RF ANTENNA General Purpose Whip, Straight NMO, N Type Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG10382DU-GPS |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Features | Cable, 5.182m, Filter |
| Frequency (Center/Band) | 1.575GHz, 140MHz, 450MHz, 808MHz |
| Frequency (Center/Band) - 1 | 140 MHz |
| Frequency (Center/Band) - 2 | 450 MHz |
| Frequency (Center/Band) - 3 | 808 MHz |
| Frequency (Center/Band) - 4 | 1.575 GHz |
| Frequency Group | VHF, UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Group Minimum (UHF) | 1 GHz, 300 MHz |
| Frequency Range (Band 1) Maximum | 180 MHz |
| Frequency Range (Band 1) Minimum | 100 MHz |
| Frequency Range (Band 2) Maximum | 520 MHz |
| Frequency Range (Band 2) Minimum | 380 MHz |
| Frequency Range (Band 3) Maximum | 870 MHz |
| Frequency Range (Band 3) Minimum | 746 MHz |
| Frequency Range (Band 4) Maximum | 1.578 GHz |
| Frequency Range (Band 4) Minimum | 1.572 GHz |
| Gain | 30 dBi, 2 dBi |
| Height (Max) | 3.27 in |
| Mounting Type | Connector Mount |
| Number of Bands | 4 |
| Power - Max | 150 W |
| RF Family/Standard | General ISM |
| Termination | NMO, N Type Male |
| VSWR | 2, 1.6 |
| VSWR Maximum | 2 |
| VSWR Minimum | 1.6 |
