Description
General part information
FLCE6L0106K2C

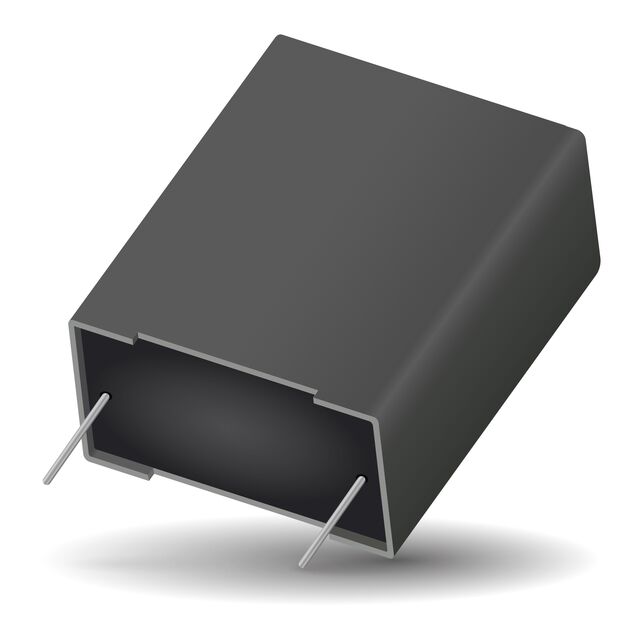

10 µF Film Capacitor 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FLCE6L0106K2C |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 4.5 mOhm |
| Height - Seated (Max) | 1.713 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.673 in |
| Size / Dimension Width | 1.102 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 400 Vpk |
