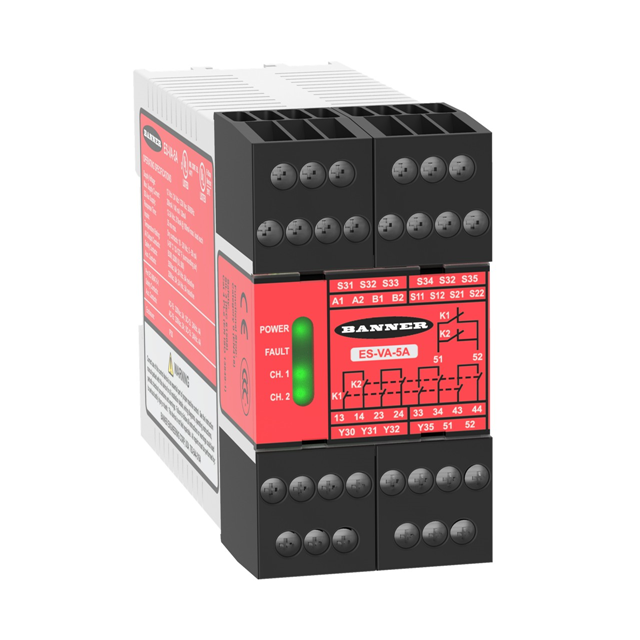

ES-VA-5A
ActiveBANNER ENGINEERING
SAFETY RELAY MODULE FOR E-STOP/ROPE PULL/INTERLOCK
ES-VA-5A
ActiveBANNER ENGINEERING
SAFETY RELAY MODULE FOR E-STOP/ROPE PULL/INTERLOCK
Description
General part information
ES-VA-5A
SAFETY RELAY MODULE FOR E-STOP/ROPE PULL/INTERLOCK
Technical Specifications
Parameters and characteristics for this part
| Specification | ES-VA-5A |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | 4, A, PST-4NO/1NC, 1, B, Form |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator |
| Mounting Type | DIN Rail |
| Operate Time | 25 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Pin Count | 5 |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 24 VDC |
| Termination Style | Screw Terminal |
