T2120060205-000
ActiveTE Connectivity AMP Connectors
ZGG-6DT(1-4)
T2120060205-000
ActiveTE Connectivity AMP Connectors
ZGG-6DT(1-4)
Description
General part information
T2120060205-000

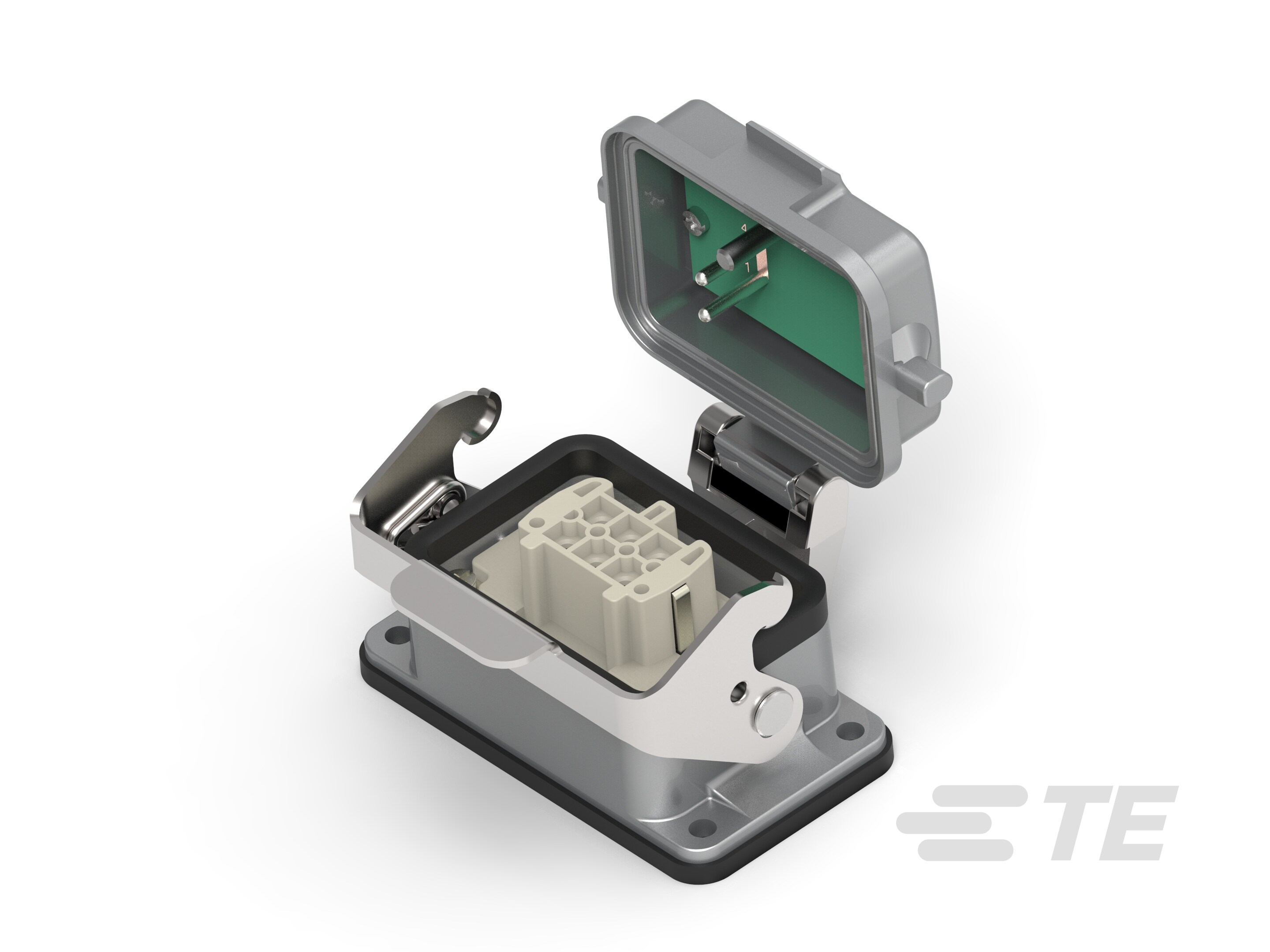

Heavy Duty Connector Hood & Base Housing Assembly With Inserts, Side Entry, Locking
Technical Specifications
Parameters and characteristics for this part
| Specification | T2120060205-000 |
|---|---|
| Connector Type | Insert with Base |
| Current Rating | 16 A |
| Gender | Female |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | H6B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
