65W PLUG ASSEMBLY-2299987-4

2299987-4

Active
TE Connectivity AMP Connectors

65W PLUG ASSEMBLY

Find alt
65W PLUG ASSEMBLY-2299987-4

2299987-4

Active
TE Connectivity AMP Connectors

65W PLUG ASSEMBLY

Find alt

Description

General part information

2299987-4

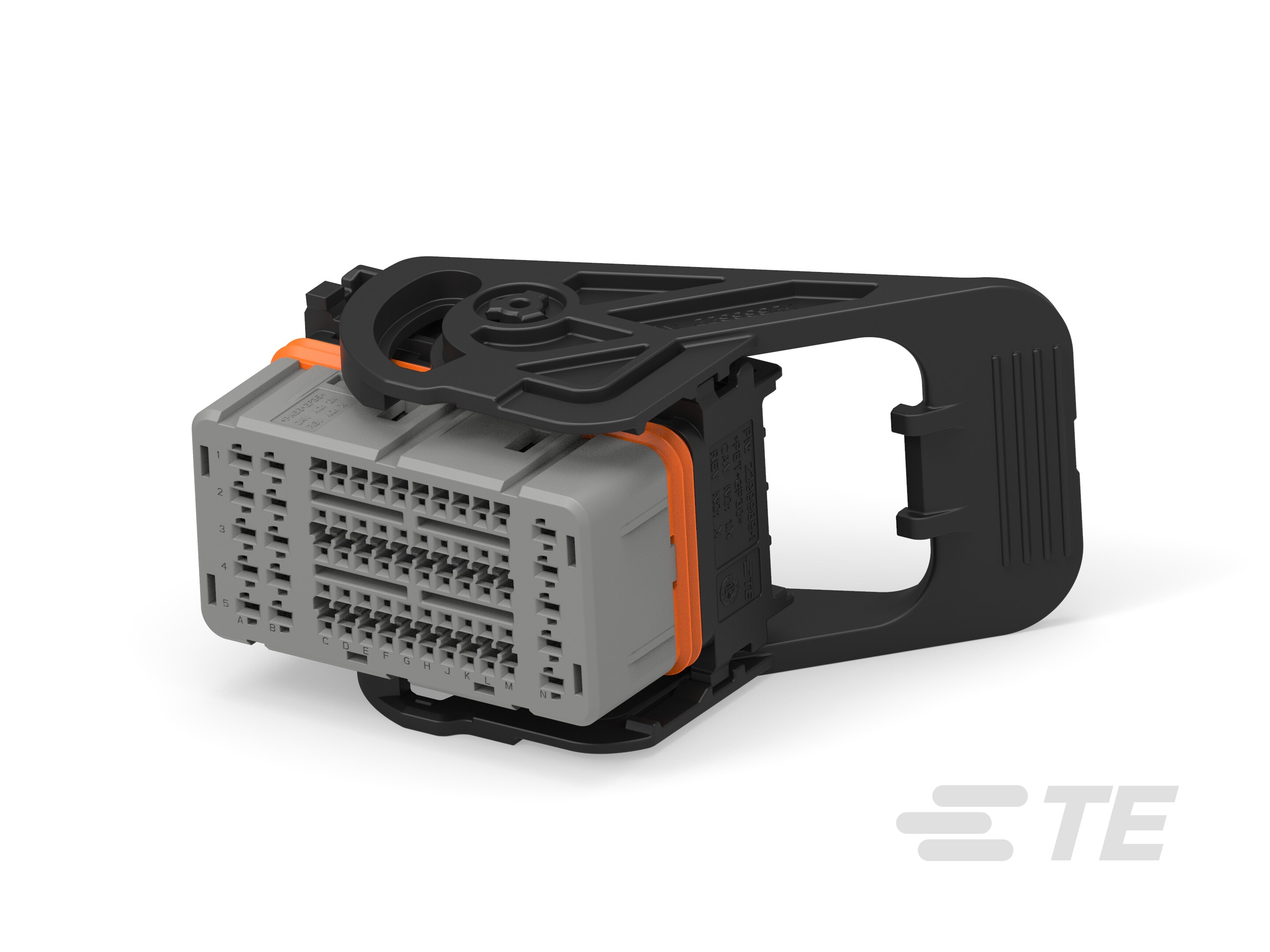

65 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.5 mm / 4 mm [.09 in / .15 in] Centerline, Sealable, Black, Wire & Cable

Technical Specifications

Parameters and characteristics for this part

Specification2299987-4
ColorBlack
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLever Lock
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions65
Number of Rows5
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Row Spacing0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
