2379812-1
ActiveTE Connectivity AMP Connectors
KIT,JAMNUT RECPT,MT,SZ 15,4 CAVITY 38999
2379812-1
ActiveTE Connectivity AMP Connectors
KIT,JAMNUT RECPT,MT,SZ 15,4 CAVITY 38999
Description
General part information
2379812-1

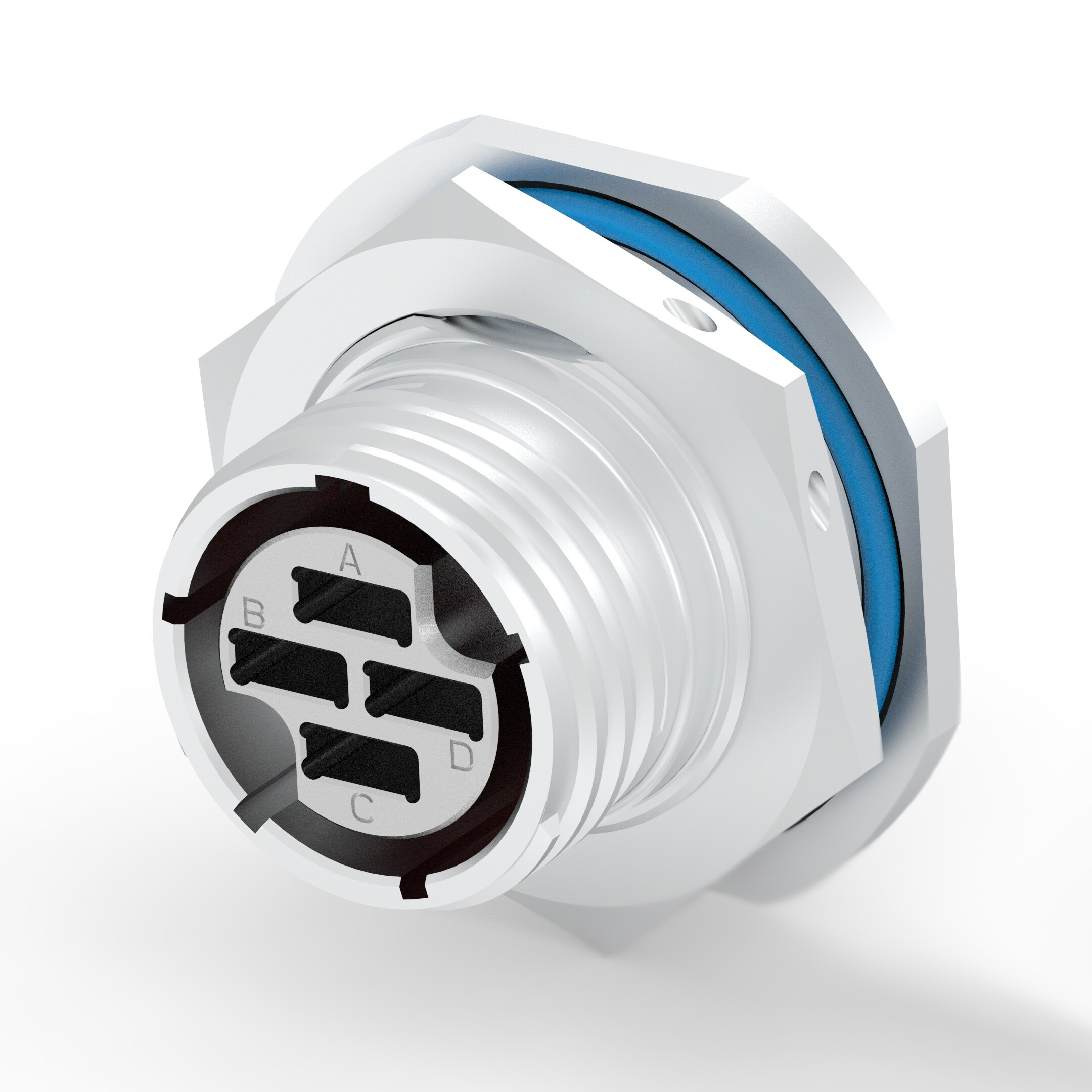

4 (Fiber Optic) Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2379812-1 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 15 |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Housing Color | Olive Drab |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Fiber Optic |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shielding | Unshielded |
| Type | For Female Sockets |
