OVLAS6CB8
ObsoleteTT Electronics/BI

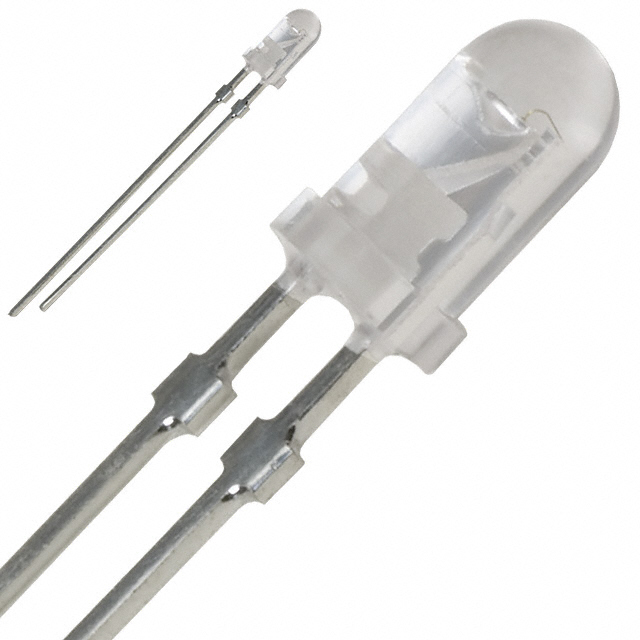

LED RED CLEAR 3MM T/H
OVLAS6CB8
ObsoleteTT Electronics/BI
LED RED CLEAR 3MM T/H
Description
General part information
OVLAS6CB8
Red 628nm LED Indication - Discrete 2.3V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | OVLAS6CB8 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 9.5 mm |
| Lens Color | Colorless |
| Lens Diameter | 3.2 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1100 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle | 65 ° |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Wavelength - Dominant | 628 nm |
