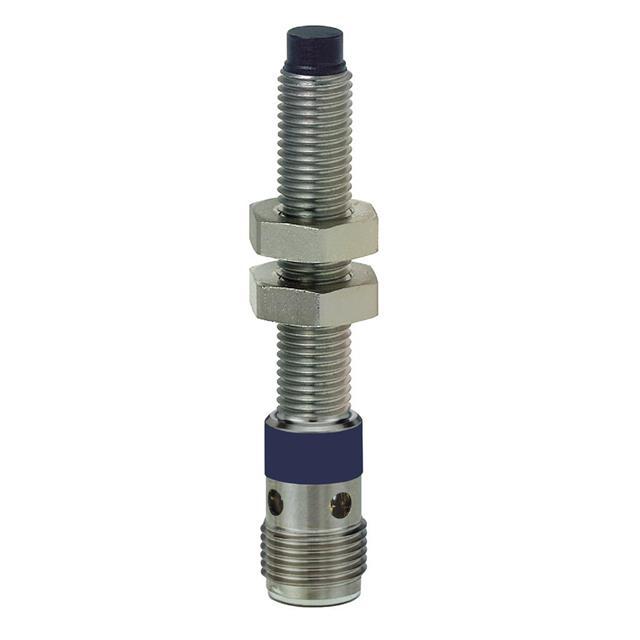

XS2M08PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 2.5 MM, PNP/SPST-NO/SPST-NC, M8 X 1, OSISENSE XS SERIES, 12 V TO 24 V
XS2M08PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 2.5 MM, PNP/SPST-NO/SPST-NC, M8 X 1, OSISENSE XS SERIES, 12 V TO 24 V
Description
General part information
XS2M08PC410D
Inductive Proximity Sensor 0.098" (2.5mm) IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS2M08PC410D |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.098 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
