Description
General part information

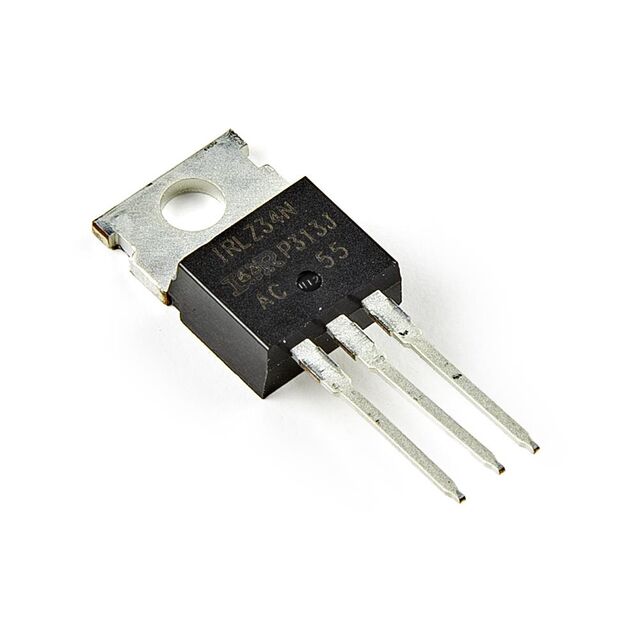

COM-24144
N-Channel 55 V 30A (Tc) 68W (Tc) Through Hole TO-220AB
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-24144 |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 30 A |
| Drain to Source Voltage (Vdss) | 55 V |
| Drive Voltage (Max Rds On) | 4 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 25 nC |
| Input Capacitance (Ciss) (Max) | 880 pF |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-3 |
| Package Name | TO-220AB |
| Power Dissipation (Max) | 68 W |
| Rds On (Max) | 35 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 16 V |
| Vgs(th) (Max) | 2 V |
