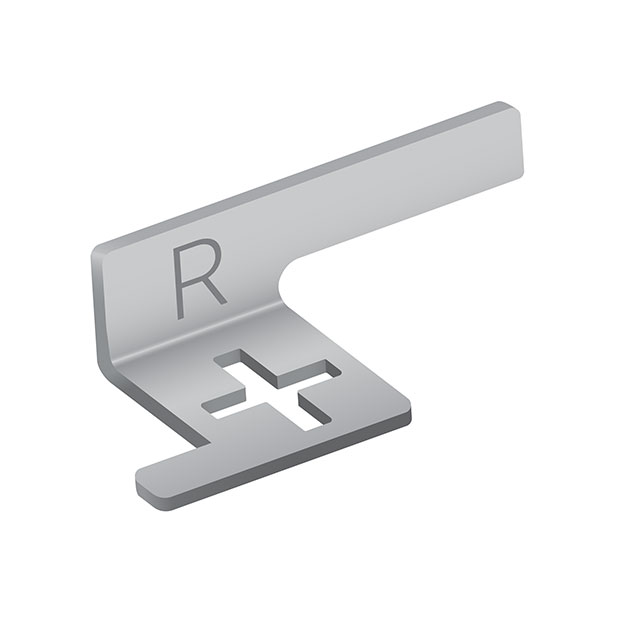

1001430
ActiveKYOCERA AVX
RF ANT 5GHZ STAMPED MET SLDR SMD
1001430
ActiveKYOCERA AVX
RF ANT 5GHZ STAMPED MET SLDR SMD
Description
General part information
1001430
RF ANTENNA Wi-Fi, WLAN Stamped Metal Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001430 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | WLAN, Wi-Fi |
| Frequency (Center/Band) | 5 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.9 GHz |
| Frequency Range (Min) | 4.9 GHz |
| Gain | 7 dBi |
| Height (Max) | 0.087 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max | 2 VA |
| RF Family/Standard | WiFi |
| Termination | Solder |
