HTC230-391L-RC
ActiveAllied Components International
390UH +/-15% H.M. TOROIDAL CHOKE
HTC230-391L-RC
ActiveAllied Components International
390UH +/-15% H.M. TOROIDAL CHOKE
Description
General part information
HTC230-391L-RC

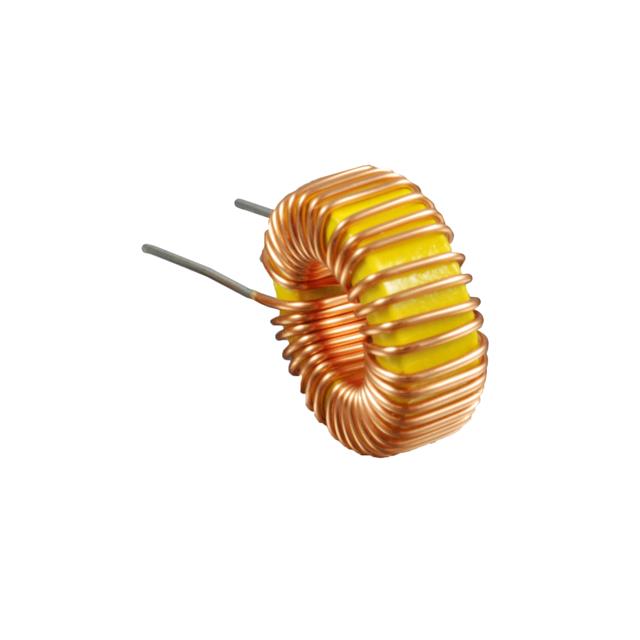

390 µH Unshielded Toroidal Inductor 5 A 72mOhm Max Horizontal, No Base, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | HTC230-391L-RC |
|---|---|
| Current Rating | 5 A |
| DC Resistance (DCR) (Max) | 72 mOhm |
| Height - Seated (Max) | 16.51 mm |
| Inductance | 390 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Horizontal, No Base, 2 PC Pin |
| Package Name | 2 PC Pin, Horizontal, No Base |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.28 in |
| Tolerance | 15 % |
| Type | Toroidal |
