Description
General part information

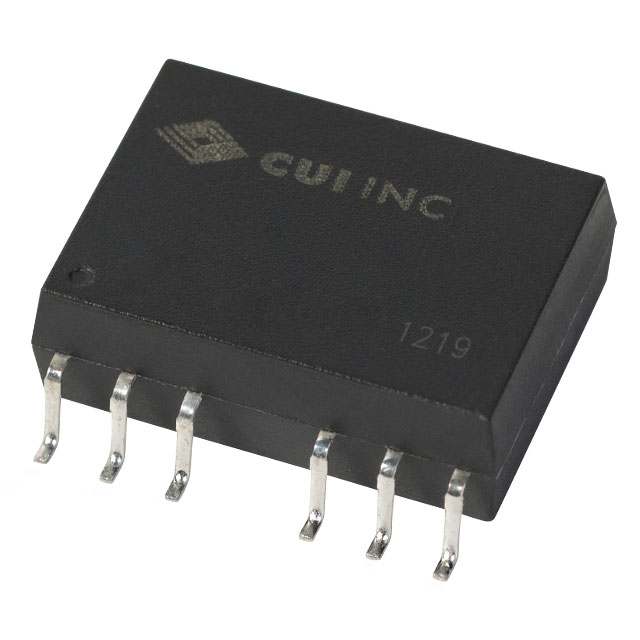

VBT2-S12-S15-SMT-TR
Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VBT2-S12-S15-SMT-TR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 133 mA |
| Efficiency | 85 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 12 Leads |
| Package Name | 14-SMD Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.23 in |
| Size / Dimension Length | 0.7 in |
| Size / Dimension Width | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output 1 | 15 V |
