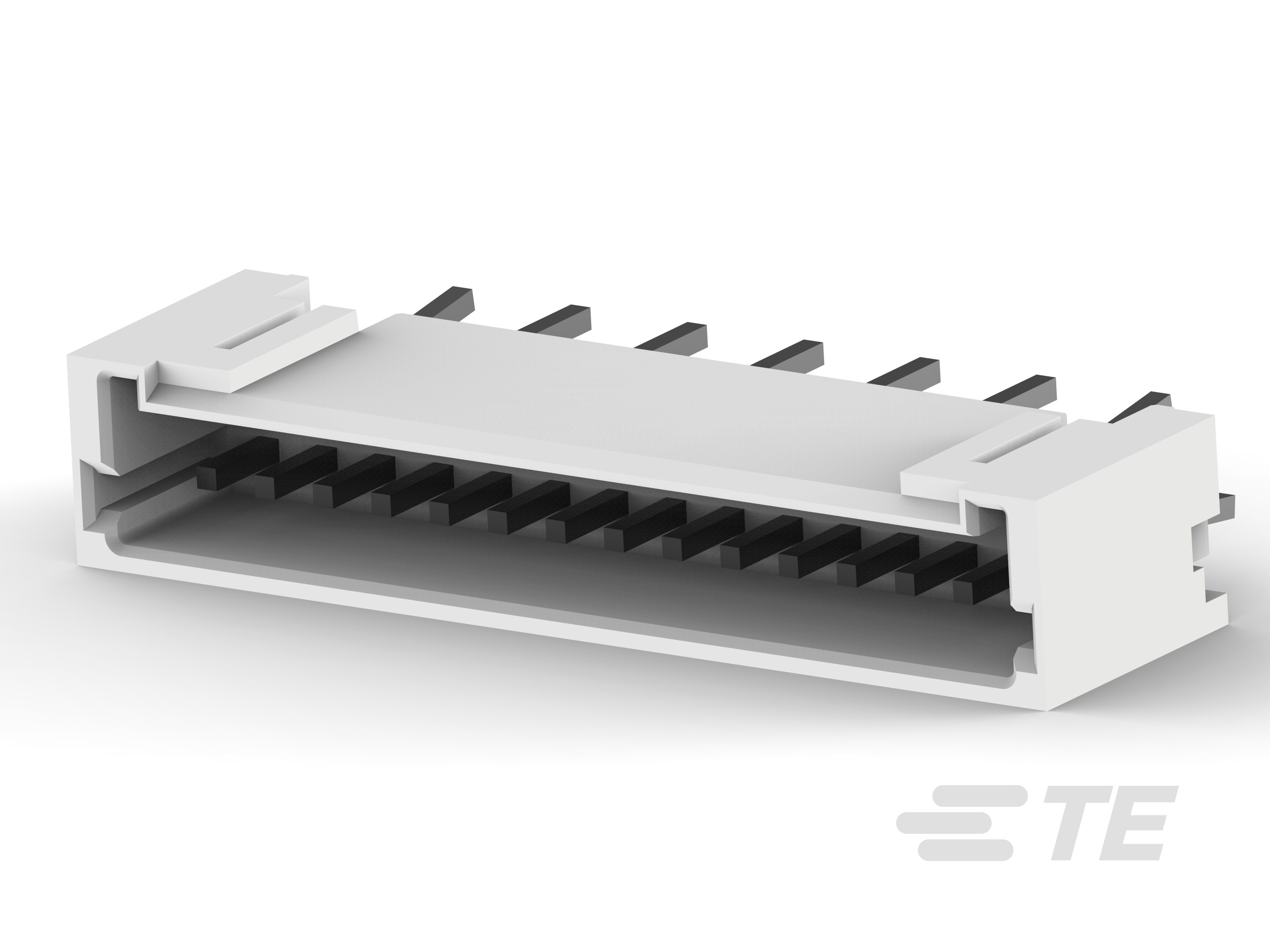

Specification	3-292207-5

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.094 in
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Detent Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	0.272 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Overall Contact Length	0.307 in
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	50 V
