74AUP1G80GS,132
ActiveNexperia USA Inc.

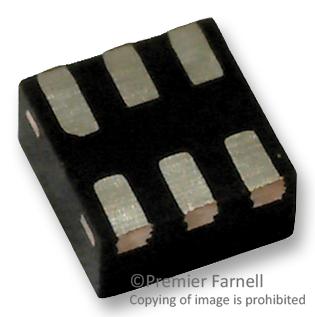

FLIP FLOP, 74AUP1G80, D, 6.4 NS, 619 MHZ, 4 MA, 6 PINS, XSON
74AUP1G80GS,132
ActiveNexperia USA Inc.
FLIP FLOP, 74AUP1G80, D, 6.4 NS, 619 MHZ, 4 MA, 6 PINS, XSON
Description
General part information
74AUP1G80GS,132
Wide supply voltage range from 0.8 V to 3.6 V
High noise immunity
Complies with JEDEC standards:JESD8-12 (0.8 V to 1.3 V)JESD8-11 (0.9 V to 1.65 V)JESD8-7 (1.2 V to 1.95 V)JESD8-5 (1.8 V to 2.7 V)JESD8-B (2.7 V to 3.6 V)
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AUP1G80GS,132 |
|---|---|
| Clock Frequency | 309 MHz |
| Current - Output High | 4 mA |
| Current - Output Low | 4 mA |
| Current - Quiescent (Iq) | 500 nA |
| Function | Standard |
| Input Capacitance | 1.5 pF |
| Max CL | 30 pF |
| Max Propagation Delay | 6.4 ns |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 bits |
| Number of Elements | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Inverted |
| Package / Case | 6-XFDFN |
| Package Length | 1 mm |
| Package Name | SOT1202, 6-XSON |
| Package Width | 1 mm |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 0.8 V |
