2005082-1
ActiveTE Connectivity AMP Connectors

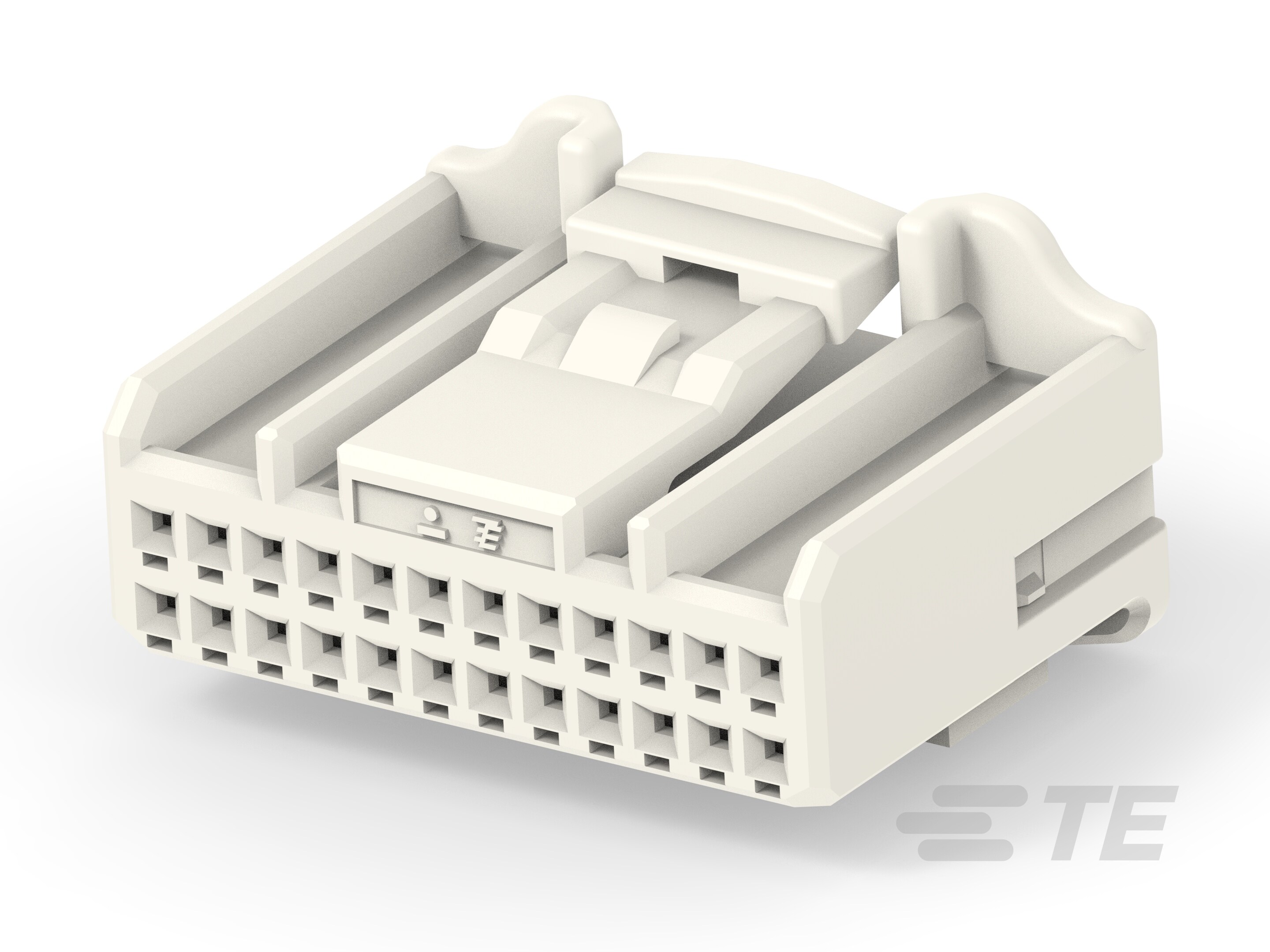

025 24P PLUG ASSY
2005082-1
ActiveTE Connectivity AMP Connectors
025 24P PLUG ASSY
Description
General part information
2005082-1
24 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.2 mm [.086 in] Centerline, Natural, Signal, TH/.025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 2005082-1 |
|---|---|
| Color | Natural |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.087 in |
| Row Spacing | 0.118 in |
