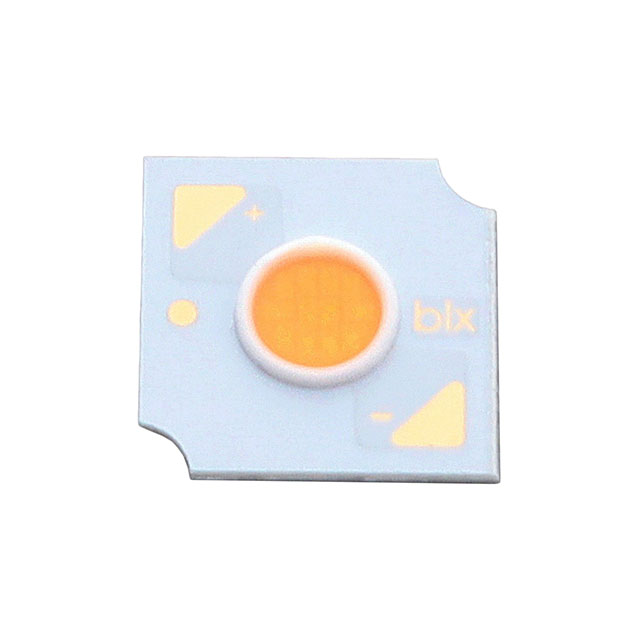

BXRH-30G0600-B-83

Active

BRIDGELUX

LED COB V4 HD WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-30G0600-B-83

Active

BRIDGELUX

LED COB V4 HD WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-30G0600-B-83

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	600 mA
Current - Test	350 mA
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.8 mm
Lumens/Watt @ Current - Test	110 lm/W
Luminous Flux @ Current/Temperature	705 lm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	18.3 V

BXRH-30 Series

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Light Emitting Surface (LES) [diameter]	CCT (K)	Type	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Lens Type	Current - Max [Max]	Configuration	Height [z]	Viewing Angle	Color	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test
BRIDGELUX BXRH-30E3000-D-23	36.6 V	1 A	9.5 mm	3000 K	Chip On Board (COB)	80	100 lm/W	Flat	1.4 A	Square	1.7 mm	112 °	Warm White	3660 lm
BRIDGELUX BXRH-30G0300-A-83	35.2 V	80 mA	3.8 mm	3000 K	Chip On Board (COB)	90	114 lm/W	Flat	180 mA	Square	1.63 mm	120 °	Warm White	321 lm	12.5 mm	12.5 mm
BRIDGELUX BXRH-30S1001-G-72	18.2 V		6.6 mm	3000 K	Chip On Board (COB)	98	96 lm/W	Flat	960 mA	Square	1.63 mm	120 °	Warm White	1223 lm
BRIDGELUX BXRH-30G1000-C-23	18.3 V	750 mA	6.6 mm	3000 K	Chip On Board (COB)	90	84 lm/W	Flat	1.05 A	Square	1.7 mm	112 °	Warm White	1153 lm	13.35 mm	13.35 mm
BRIDGELUX BXRH-30H3000-D-83	36.6 V		8.8 mm	3000 K	Chip On Board (COB)	97	104 lm/W	Flat	1.2 A	Square	1.63 mm	120 °	Warm White	2669 lm	19 mm	19 mm
BRIDGELUX BXRH-30E1000-G-83	18.3 V		6.6 mm	3000 K	Chip On Board (COB)	80	140 lm/W	Flat	1.2 A	Square	1.63 mm	120 °	Warm White	1797 lm
BRIDGELUX BXRH-30G6000-G-23	36.6 V	1.75 A	12.6 mm	3000 K	Chip On Board (COB)	90	84 lm/W	Flat	2.2 A	Square	1.7 mm	112 °	Warm White	5380 lm	17.85 mm	17.85 mm
BRIDGELUX BXRH-30E1000-C-23	18.3 V	750 mA	6.6 mm	3000 K	Chip On Board (COB)	80	100 lm/W	Flat	1.05 A	Square	1.7 mm	112 °	Warm White	1373 lm	13.35 mm	13.35 mm
BRIDGELUX BXRH-30E0300-A-83	35.2 V	80 mA	3.8 mm	3000 K	Chip On Board (COB)	80	141 lm/W	Flat	180 mA	Square	1.63 mm	120 °	Warm White	396 lm	12.5 mm	12.5 mm
BRIDGELUX BXRH-30G1000-B-73	35.4 V	350 mA	7 mm	3000 K	Chip On Board (COB)	90	95 lm/W	Flat	480 mA	Square	1.63 mm	120 °	Warm White	1173 lm			85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 0.97

Description

General part information

BXRH-30 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V4 HD LED Array White, Warm Square
