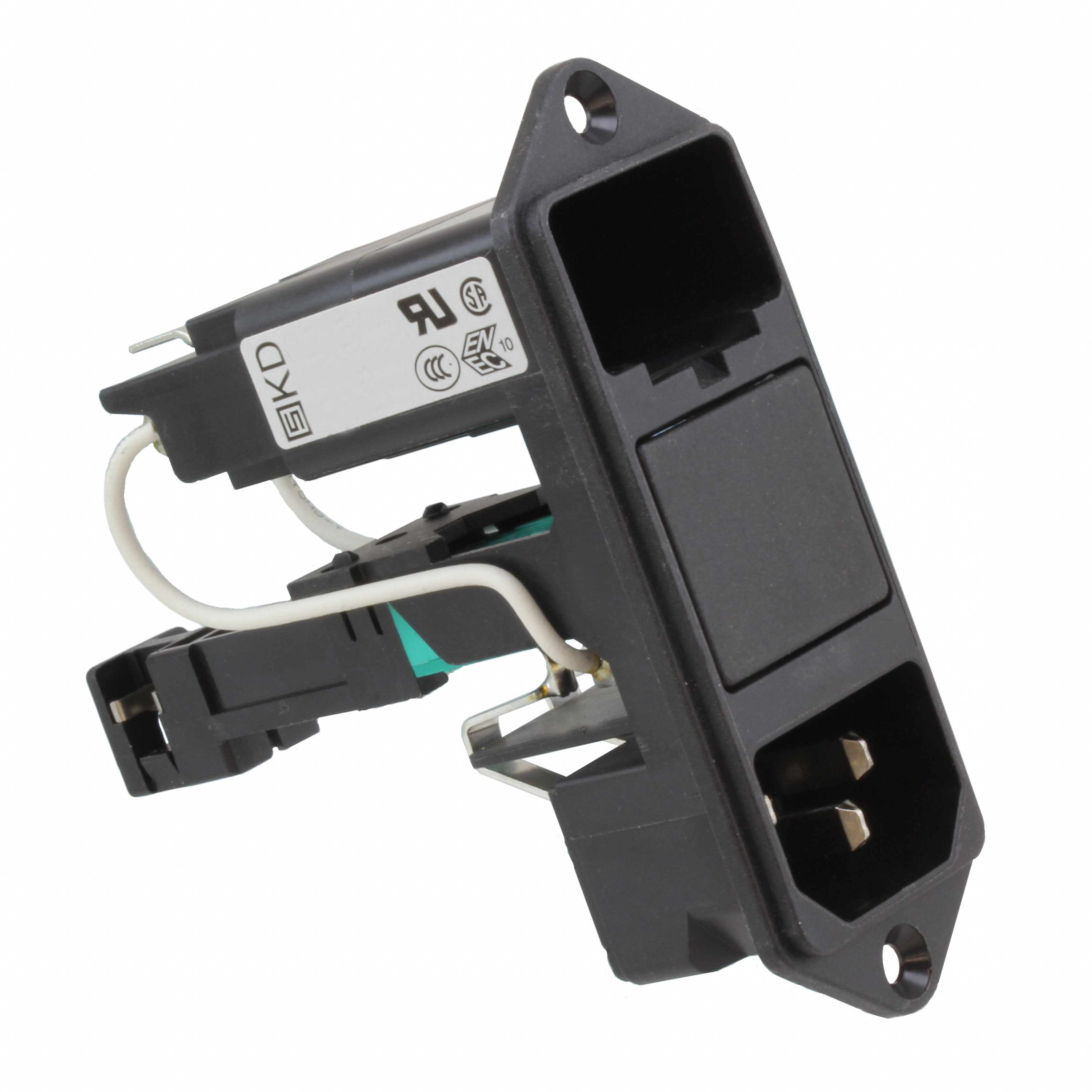

KD14.4199.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KD14.4199.151

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	66.5 mm
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Fuse Holder, Drawer	Filter Type	Connector Style	Accomodates a Fuse	Termination	Termination	Switch Features	Voltage Rating - Appliance Inlet	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Connector Type	Current Rating - Appliance Inlet	Ingress Protection	Approval Agency
SCHURTER Inc. KD14.4199.151	UL94 V-0	Drawer Sold Separate	Unfiltered - Commercial	IEC 320-C14		0.189 ", 4.8 mm	Quick Connect	Switch On-Off	250 VAC	Flange, Panel Mount	27.5 mm	66.5 mm	Voltage Selector	Receptacle, Male Blades - Module	10 A	IP40	CCC, CSA, ENEC, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
