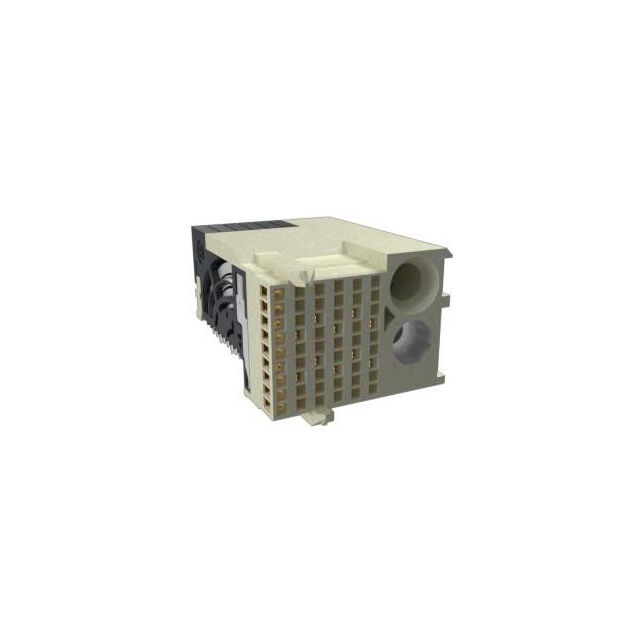

10135262-10CLF

Active

Amphenol ICC (FCI)

AIRMAX VSE RAR 3X6 RG

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

AIRMAX VSE RAR 3X6 RG

Technical Specifications

Parameters and characteristics for this part

Specification	10135262-10CLF

Color	Natural
Connector Style	Airmax VSE™, Guide Right
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Voltage Rating	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions Loaded	Termination	Mounting Type	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Style	Number of Positions	Number of Columns	Color
Amphenol ICC (FCI) 10135262-10CLF	30 VAC	9	0.079 in	2 mm	All	Press-Fit	Board Edge Right Angle Through Hole	UL94 V-0	Receptacle Female Sockets	85 °C	-55 °C	500 mA	Airmax VSE™ Guide Right	54	6	Natural
Amphenol ICC (FCI) 10135262-10PLF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural Airmax VSE™, Guide Right
