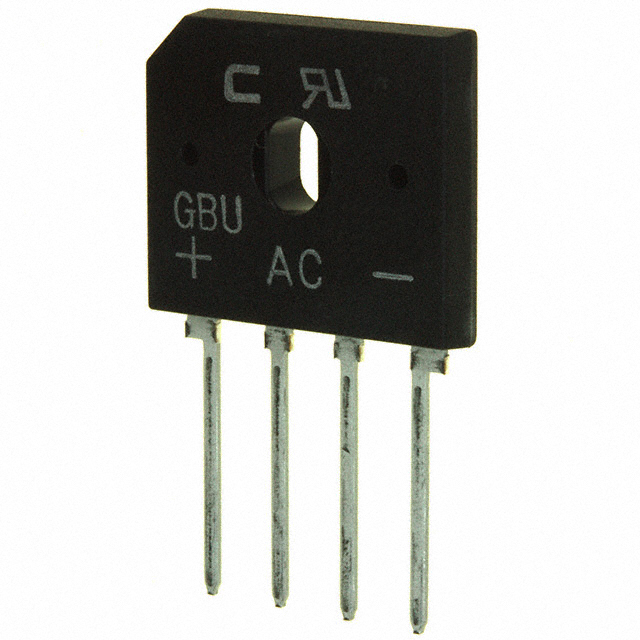

GBU1510-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 15A GBU

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 15A GBU

Technical Specifications

Parameters and characteristics for this part

Specification	GBU1510-G

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBU
Supplier Device Package	GBU
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	1000 V

BRIDGE RECT 1PHASE 1KV 15A GBU

Part	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Diode Type
Comchip Technology GBU1510-G	1000 V	-55 °C	150 °C	Through Hole	10 çA	Standard	15 A	GBU	4-SIP, GBU	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU
