6-103908-7
ActiveTE Connectivity AMP Connectors

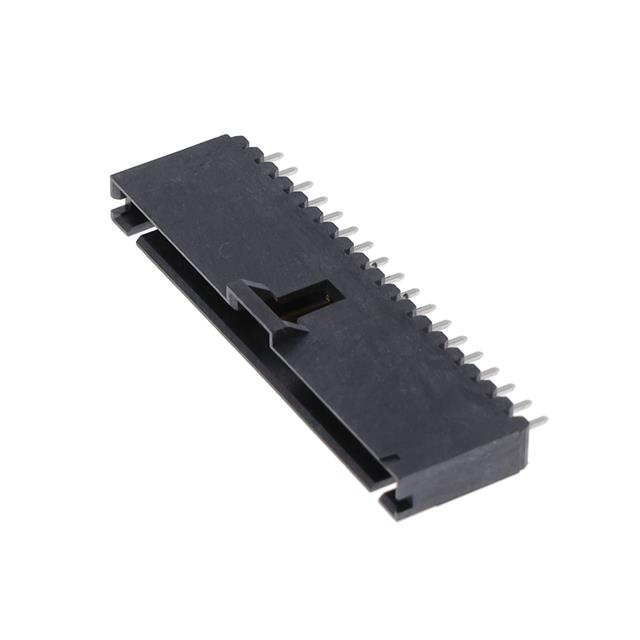

CONN HEADER VERT 18POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-103908-7
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 18POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-103908-7 | 103908 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 18 | 4 - 18 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.545 in | 0.545 in |
| Overall Contact Length | 13.84 mm | 13.84 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 792 | $ 4.33 | |
103908 Series
CONN HEADER VERT 7POS 2.54MM
| Part | Contact Finish - Post | Features | Material Flammability Rating | Applications | Shrouding | Overall Contact Length | Overall Contact Length | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Rows | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Finish - Mating | Contact Shape | Number of Positions Loaded | Insulation Material | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Current Rating (Amps) | Fastening Type | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103908-6 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 7 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 103908-5 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 6 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 5-103908-3 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 4 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 6-103908-5 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | 16 | |
TE Connectivity AMP Connectors 103908-3 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 4 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 6-103908-1 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 12 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 1-103908-0 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 11 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 6-103908-3 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 14 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 6-103908-0 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 11 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 5-103908-4 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | ||
TE Connectivity AMP Connectors 6-103908-4 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 15 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 103908-8 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 9 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 5-103908-9 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 10 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 6-103908-7 | Tin | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 18 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 103908-6 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 7 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable | |
TE Connectivity AMP Connectors 103908-9 | Tin-Lead | Keying Slot | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | 0.545 in | 13.84 mm | 2.54 µm | 100 µin | Male Pin | 1 | 0.13 in | 3.3 mm | Through Hole | Gold | Square | All | Thermoplastic | 10 | Header | -65 ░C | 105 ░C | Press-Fit, Solder | Black | 3 A | Latch Holder | 0.23 in | 5.84 mm | 30 Áin | 0.76 Ám | Brass | 13.6 mm | 0.535 in | 0.1 in | 2.54 mm | Board to Board, Cable |
Description
General part information
103908 Series
Connector Header Through Hole 18 position 0.100" (2.54mm)
Documents
Technical documentation and resources
