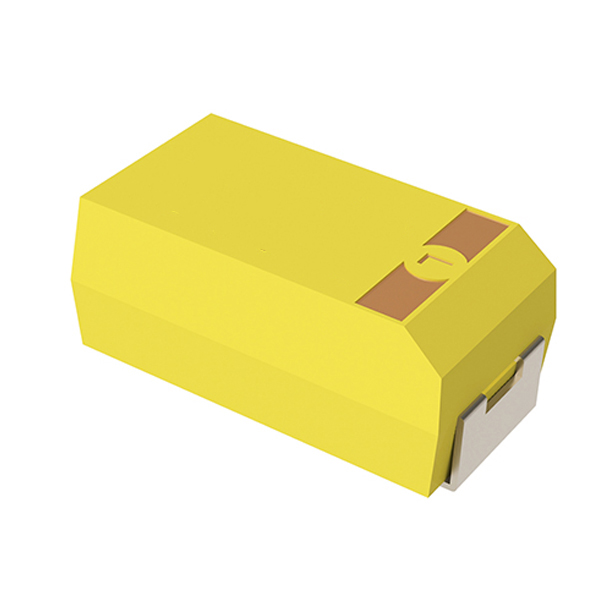

Specification	T489C156M020ATE400

Capacitance	15 µF
ESR (Equivalent Series Resistance)	400 mOhm
Features	General Purpose
Height - Seated (Max)	0.11 in
Lifetime	2000 Hrs
Manufacturer Size Code	C
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	2312 (6032 Metric)
Size / Dimension Length	0.236 in
Size / Dimension Width	0.126 in
Tolerance	20 %
Type	Molded
Voltage - Rated	20 V

T489 Series

Part	Lifetime	ESR (Equivalent Series Resistance)	Mounting Type	Voltage - Rated	Type	Ratings	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Manufacturer Size Code	Features	Height - Seated (Max)	Package / Case	Tolerance	Package Diameter	Package Name
KEMET T489C156K020ATA400	2000 Hrs	400 mOhm	Surface Mount	20 V	Molded	AEC-Q200	0.236 in	0.126 in	125 °C	-55 °C	15 µF	C	Automotive	0.11 in	2312 (6032 Metric)	10 %
KEMET T489A155K020ATE5K4	2000 Hrs	5.4 Ohm	Surface Mount	20 V	Molded		0.126 in	0.063 in	125 °C	-55 °C	1.5 µF	A	General Purpose	0.071 in	1206 (3216 Metric)	10 %
KEMET T489B475K016ATE3K1	2000 Hrs	3.16 Ohm	Surface Mount	16 V	Molded		0.138 in	0.11 in	125 °C	-55 °C	4.7 µF	B	General Purpose	0.083 in	1411 (3528 Metric)	10 %	3528 mm	1411
KEMET T489A105K035ATE3K0	2000 Hrs	3 Ohm	Surface Mount	35 V	Molded		0.126 in	0.063 in	125 °C	-55 °C	1 µF	A	General Purpose	0.071 in	1206 (3216 Metric)	10 %
KEMET T489B105K035ATE2K0	2000 Hrs	2000 mOhm	Surface Mount	35 V	Molded		0.138 in	0.11 in	125 °C	-55 °C	1 µF	B	General Purpose	0.083 in	1411 (3528 Metric)	10 %	3528 mm	1411
KEMET T489C476K016ATA350	2000 Hrs	350 mOhm	Surface Mount	16 V	Molded	AEC-Q200	0.236 in	0.126 in	125 °C	-55 °C	47 µF	C	Automotive	0.11 in	2312 (6032 Metric)	10 %
KEMET T489X477K006ATE200	2000 Hrs	200 mOhm	Surface Mount	6.3 V	Molded		0.287 in	0.169 in	125 °C	-55 °C	470 µF	X	General Purpose	0.169 in	2917 (7343 Metric)	10 %
KEMET T489C336K016ATE590	2000 Hrs	590 mOhm	Surface Mount	16 V	Molded		0.236 in	0.126 in	125 °C	-55 °C	33 µF	C	General Purpose	0.11 in	2312 (6032 Metric)	10 %
KEMET T489A105K020ATE6K6	2000 Hrs	6.6 Ohm	Surface Mount	20 V	Molded		0.126 in	0.063 in	125 °C	-55 °C	1 µF	A	General Purpose	0.071 in	1206 (3216 Metric)	10 %
KEMET T489D686M016ATE490	2000 Hrs	490 mOhm	Surface Mount	16 V	Molded		0.287 in	0.169 in	125 °C	-55 °C	68 µF	D	General Purpose	0.122 in	2917 (7343 Metric)	20 %
